RESTRAINT SYSTEM COMPONENT LOCATIONS

Component

⁽¹⁾Location

Clockspring

On steering column, behind steering wheel

Dual-stage driver-side air bag module

Center of steering wheel

Dual-stage passenger-side air bag module

Right side of instrument panel, above glove box

Front impact sensor

On upper radiator core support, next to hood latch

Restraints Control Module (RCM)

Under center console, forward of hand brake

Seat belt buckle pretensioner

Integrated with right front seat belt buckle

Seat belt retractor pretensioner

Integrated with left front seat belt retractor

Seat track position sensor

On left front seat track

Side crash sensors

On floor, under outboard side of front seats

Side air bag modules

Behind outboard bolster of front seat backs

⁽¹⁾	See Fig 1 & Fig 2 .

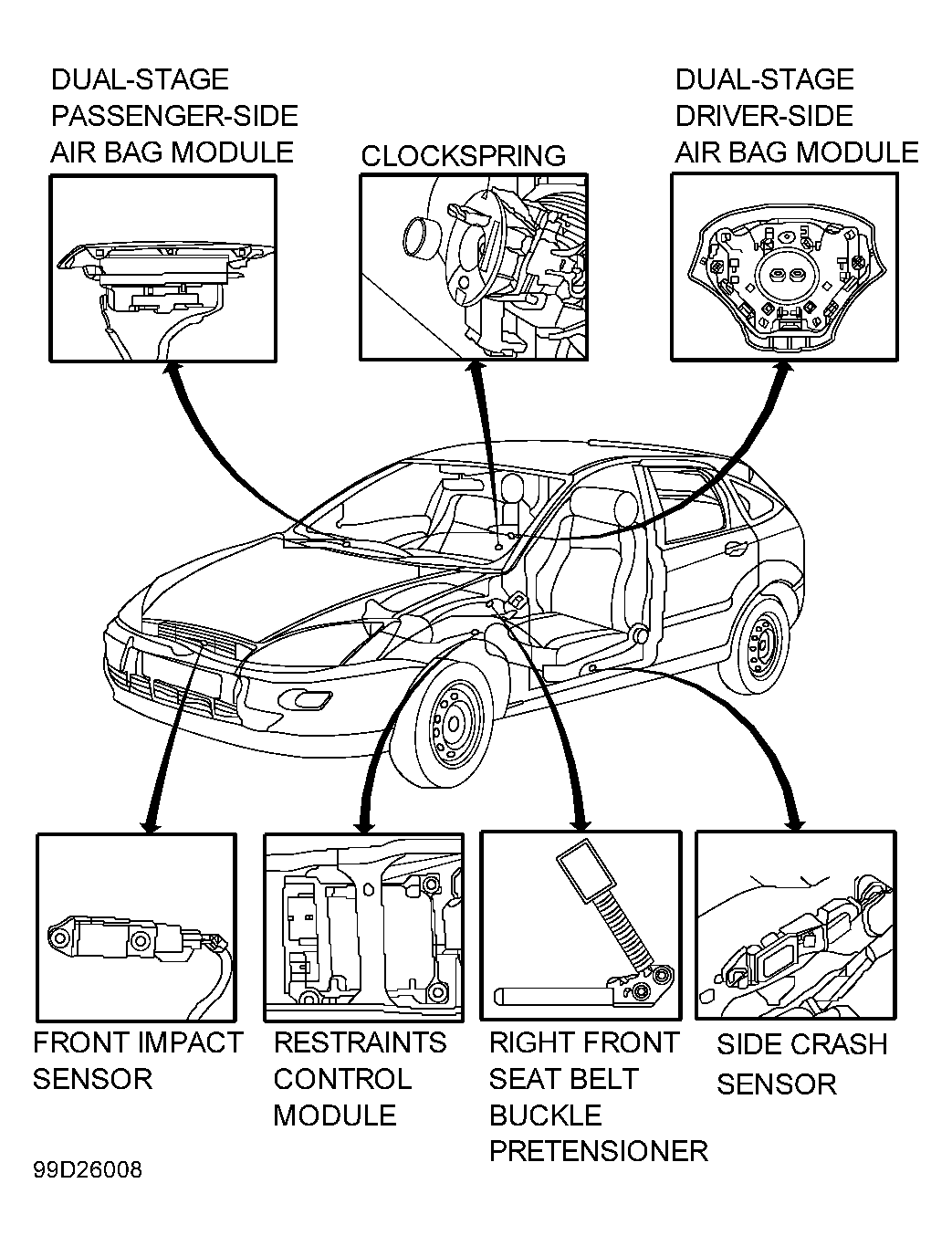

Fig 1: Locating Restraint System Components (1 Of 2)

Courtesy of FORD MOTOR CO.
