Front Suspension System: Description

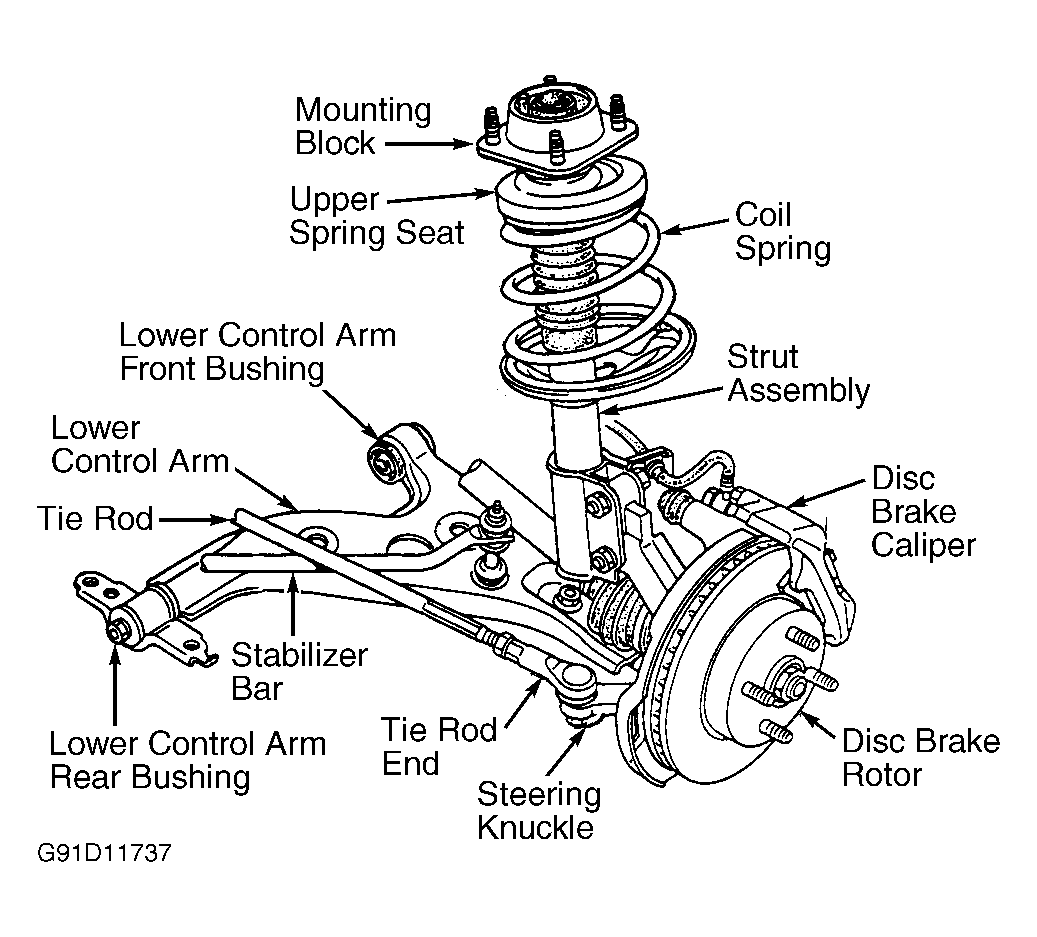

Front suspension is MacPherson strut type using gas-pressurized struts and cast steering knuckles. See Fig 1 . Strut assembly includes a rubber isolated top mount and a thrust bearing. Strut assembly is bolted to strut tower and steering knuckle. A pinch joint is built into steering knuckle to retain ball joint stud. A forged control arm is attached to underbody and steering knuckle. A stabilizer bar is connected to both control arms and secured to crossmember at bracket assemblies. Tie rod ends connect to steering knuckle.
Installation of new front strut assemblies and/or springs in pairs is not required by manufacturer. Install front suspension assemblies and/or springs one at a time as required. Ball joints and control arm pivot bushings may be replaced individually.
