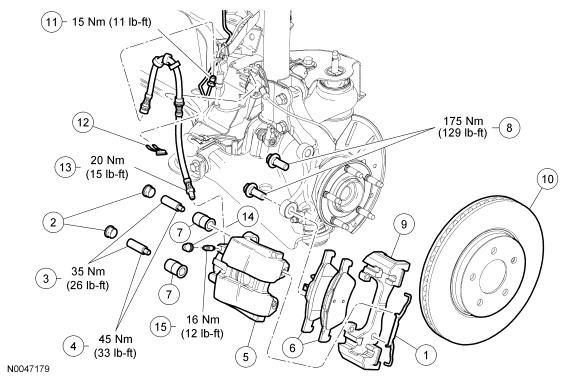

Front Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2007 Mercury Mariner and 2007 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 2K583 | Brake caliper clip (disc-drum system) |
| 1 | 2B527 | Brake caliper clip (4 wheel disc system) |
| 2 | - | Brake caliper dust boot caps (2 required) (part of kit 2L527) |
| 3 | - | Brake caliper guide pin bolts (2 required) (part of kit 2L527) (disc-drum system) |
| 4 | - | Brake caliper guide pin bolts (2 required) (part of kit 2L527) (4 wheel disc system) |
| 5 | 2B118 RH/ 2B119 LH | Brake caliper (disc-drum system) |
| 5 | 2L232 RH/ 2L231 LH | Brake caliper (4 wheel disc system) |
| 6 | 2001 | Brake pad kit |
| 7 | - | Brake caliper dust boots (2 required) (part of kit 2L527) |
| 8 | W708519 | Brake caliper anchor plate bolts (2 required) |
| 9 | 2C359 | Brake caliper anchor plate |
| 9 | 2C566 | Brake caliper anchor plate |
| 10 | 1032 | Brake disc |
| 11 | - | Brake tube fitting |
| 12 | 2B223 | Brake caliper jounce hose retaining clip |
| 13 | 2278 | Brake caliper jounce hose |
| 14 | 2L126 | Bleeder screw cap (disc-drum system) |
| 14 | - | Bleeder screw cap (part of kit 2C563) (4 wheel disc system) |
| 15 | 2A125 | Bleeder screw (disc-drum system) |
| 15 | - | Bleeder screw (part of kit 2C563) (4 wheel disc system) |
