2000 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE

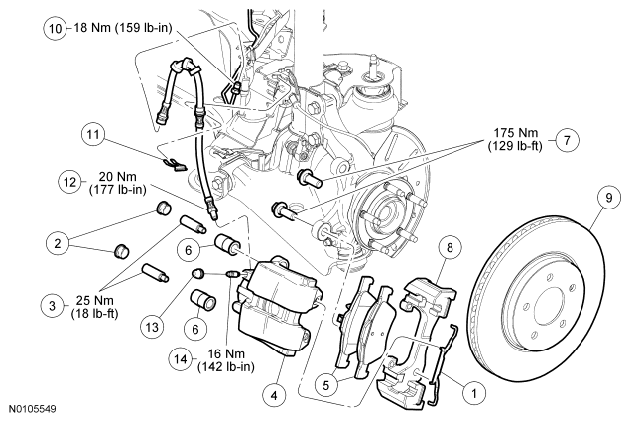

Front Disc Brake System - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2068 | Brake pad anti-rattle spring |
| 2 | - | Brake caliper dust boot caps (part of kit 2L527) |
| 3 | - | Brake caliper guide pin bolts (part of kit 2L527) |
| 4 | 2B121 LH/2B120 RH | Brake caliper |
| 5 | 2001 | Brake pad kit |
| 6 | - | Brake caliper dust boots (part of kit 2L527) |
| 7 | W708519 | Brake caliper anchor plate bolts |
| 8 | 2B540 | Brake caliper anchor plate |
| 9 | 1125 | Brake disc |
| 10 | - | Brake tube fitting (part of 2263 RH/2264 LH) |
| 11 | 2B223 | Brake flexible hose retaining clip |
| 12 | 2078 | Brake flexible hose |
| 13 | - | Bleeder screw cap (part of kit 2208) |
| 14 | - | Bleeder screw (part of kit 2208) |
- For additional information, refer to the appropriate procedure(s).
