Identification Codes: Notes

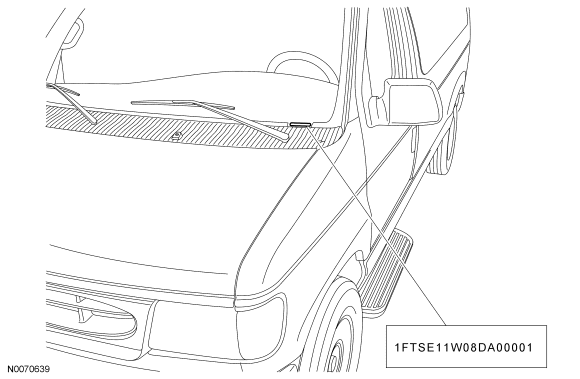

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel top upper left of the dash. The VIN number is also found on the vehicle certification (VC) label.
If the VIN plate requires replacement, authorized dealers must contact their respective regional office.
| Item | Description |
|---|---|
| 1 | World manufacturer identifier (WMI) |
| 2 | Brake type and gross vehicle weight rating (GVWR) |
| 3 | Vehicle line, series and body type |
| 4 | Engine type |
| 5 | Check digit |
| 6 | Model year |
| 7 | Assembly plant |
| 8 | Production sequence number |
