2000 Ford ZX2 AutomaticFACTORY OEM SERVICE PROCEDURE
Tr Sensor
- Disconnect negative battery cable. Remove air cleaner assembly. Remove shift cable nut and retaining clip. Ensure shift lever at transmission is in Neutral position. Loosen TR sensor bolts. Disconnect electrical connector.

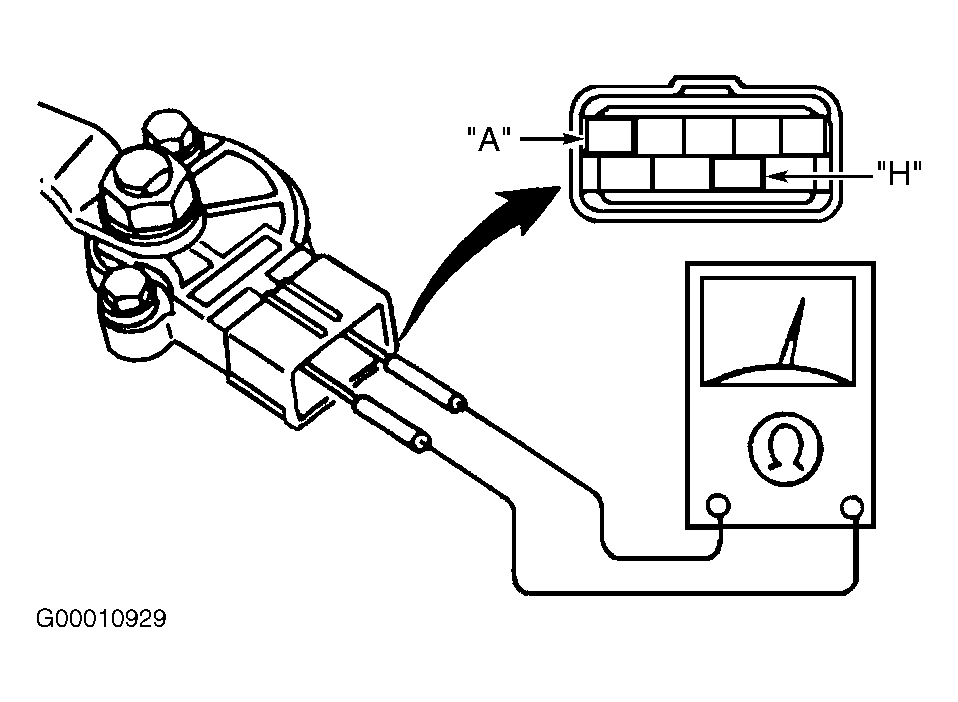

- Connect an ohmmeter between TR sensor terminals "A" and "H". See Fig 1 . Rotate sensor to point where there is no continuity between terminals. While holding sensor in place, tighten bolts. Disconnect ohmmeter. Install sensor connector. Install shift cable, air cleaner and battery cable.
