2000 Ford Taurus SELFACTORY OEM SERVICE PROCEDURE

SSP Relay Index

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

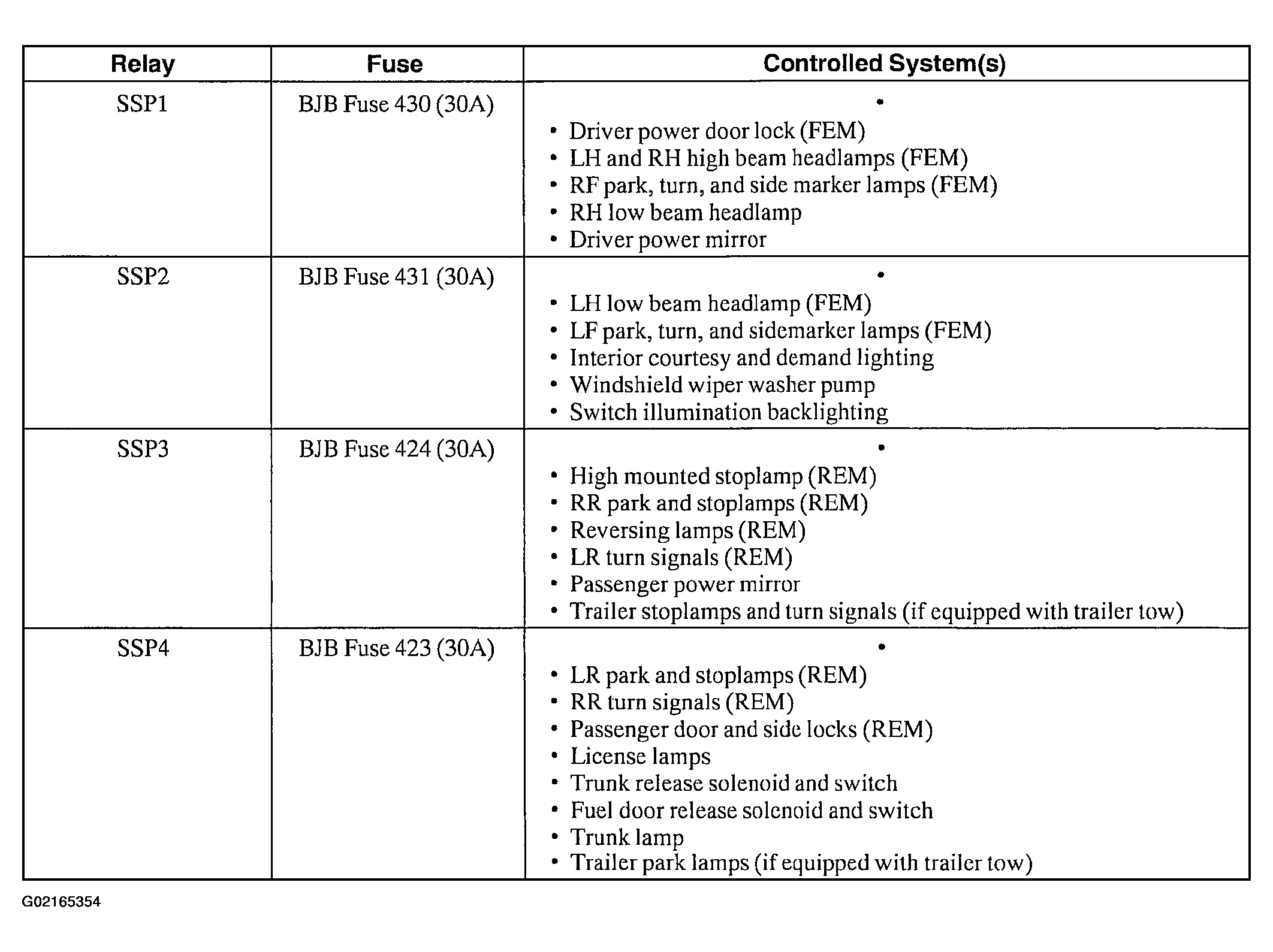

Fig 1: SSP Relay Index

Courtesy of FORD MOTOR CO.

When diagnosing an SSP relay, check that all systems for that relay are inoperative. See EXTERIOR LIGHTING if:

All Systems For One SSP Relay Are Inoperative
All Systems For All SSP Relays Are Inoperative
