EATC Module C228A / EMTC Module C294A

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

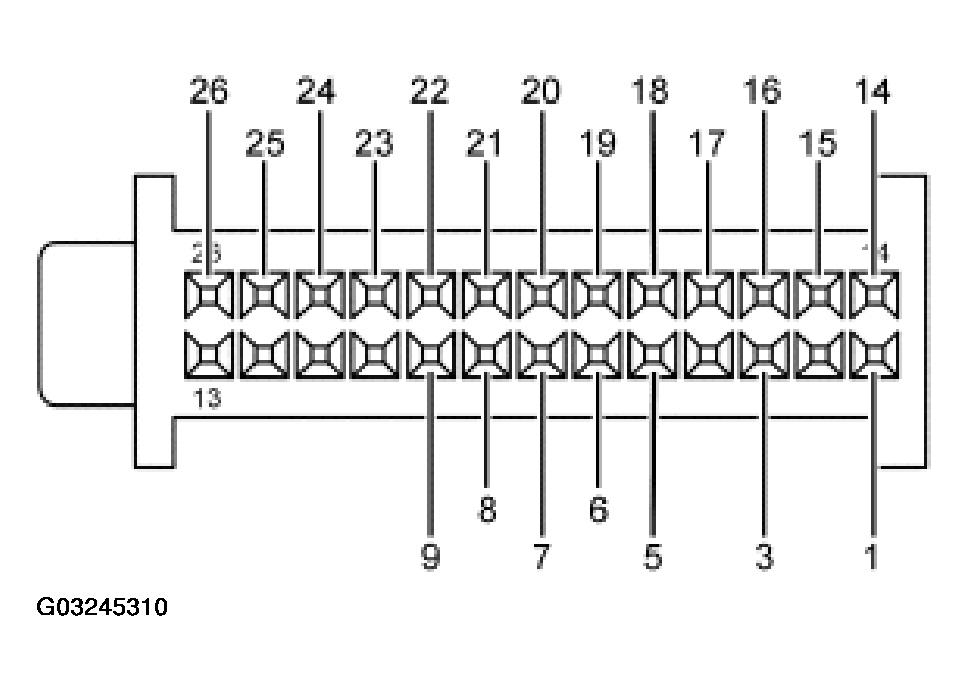

Fig 1: Identifying EATC Module C228a / EMTC Module C294a
G03245310Courtesy of FORD MOTOR CO.
EATC MODULE C228A / EMTC MODULE C294A CONNECTOR CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 1203 (BK/LB) ground Less than 5 ohms to chassis ground.
3 (EMTC single-zone only) CKT 1397 (GY/WH) EMTC module A/C request signal to SJB Greater than 10,000 ohms to chassis ground and 0 volts.
5 CKT 1977 (YE/BK) EATC/EMTC module reference voltage to mode door actuator Greater than 10,000 ohms to chassis ground and 0 volts.
6 CKT 245 (BN/LG) EATC/EMTC module to LH temperature blend door actuator motor drive A circuit Greater than 10,000 ohms to chassis ground and 0 volts.
7 CKT 246 (VT) EATC/EMTC module to LH temperature blend door actuator motor drive B circuit Greater than 10,000 ohms to chassis ground and 0 volts.
8 CKT 1991 (LB/WH) EATC/EMTC module to air inlet door actuator motor drive A circuit Greater than 10,000 ohms to chassis ground and 0 volts.
9 CKT 1990 (WH/LB) EATC/EMTC module to air inlet door actuator motor drive B circuit Greater than 10,000 ohms to chassis ground and 0 volts.
14 CKT 1003 (GY/YE) Ignition voltage Greater than 10 volts with the ignition ON.
15 CKT 1978 (BN/LG) EATC/EMTC module return signal from mode door actuator Greater than 10,000 ohms to chassis ground and 0 volts.
16 CKT 1982 (LB/BK) EATC/EMTC module feedback signal from mode door actuator Greater than 10,000 ohms to chassis ground and 0 volts.
17 CKT 435 (TN/LB) EATC/EMTC (dual-zone) module feedback signal from RH temperature blend door actuator Greater than 10,000 ohms to chassis ground and 0 volts.
18 CKT 437 (YE/LG) EATC/EMTC module feedback signal from LH temperature blend door actuator Greater than 10,000 ohms to chassis ground and 0 volts.
19 CKT 1989 (OG/LB) EATC/EMTC module to mode door actuator motor drive A circuit Greater than 10,000 ohms to chassis ground and 0 volts.
20 CKT 1988 (BN/OG) EATC/EMTC module to mode door actuator motor drive B circuit Greater than 10,000 ohms to chassis ground and 0 volts.
21 CKT 436 (RD/LG) EATC/EMTC module reference voltage to temperature blend door actuator Greater than 4.5 volts with the ignition ON and the EATC/EMTC in any position other than off.
22 CKT 438 (RD/WH) EATC/EMTC module signal ground to temperature blend door actuator 0 ohms to chassis ground.
23 (EMTC only) CKT 1398 (PK/WH) Blower motor speed signal to SJB Greater than 10 volts with the ignition ON.
24 CKT 1069 (OG/LB) EATC/EMTC (dual-zone) module to RH temperature blend door actuator motor drive A circuit Greater than 10,000 ohms to chassis ground and 0 volts.
25 CKT 660 (YE/LG) EATC/EMTC (dual-zone) module to RH temperature blend door actuator motor drive B circuit Greater than 10,000 ohms to chassis ground and 0 volts.
26 CKT 1001 (WH/YE) Battery voltage Greater than 10 volts at all times.
