Pinpoint Test L: DTC U1016 - SCP Invalid Data Powertrain Control Module: Overview

Test Step

1. L1 CHECK THE RECORDED DTCS FROM THE POWERTRAIN CONTROL MODULE (PCM)
   • Use the recorded results from the PCM self-test.
   • Are any DTCs recorded?

   Result / Action to Take

   1. Yes  : For PXXX codes, REFER to the INTRODUCTION article in ENGINE PERFORMANCE .

      For all other codes, REFER to MODULE COMMUNICATIONS NETWORK - LS .

   2. No  : GO to L2.
2. L2 MONITOR THE PCM REVERSE INPUT
   • Enter the following diagnostic mode on the diagnostic tool: PCM PID Monitor.
   • Monitor the transmission range (TR) sensor PID.
   • Place the selector lever in REVERSE.
   • Does the TR sensor PID indicate correctly?
   1. Yes  : GO to L3.
   2. No  : REFER to AUTOMATIC TRANSMISSION - 5R55S to continue diagnosis of the input.
3. L3 CHECK THE REVERSE SIGNAL INPUT
   • Press and hold the AUDIO and MENU buttons for 5 seconds.

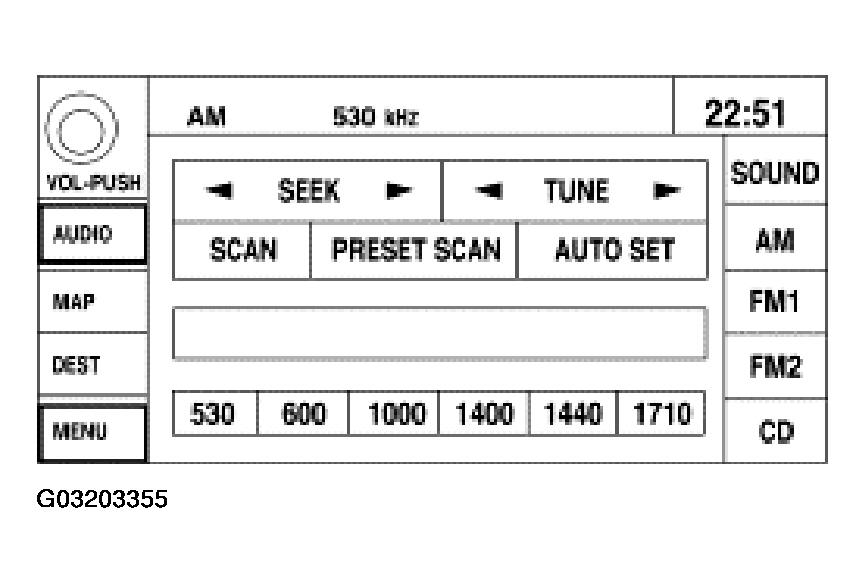

     Fig 1: Identifying Display Of Reverse Signal Input (1 Of 5)

     Courtesy of FORD MOTOR CO.
   • Press 917 Enter.

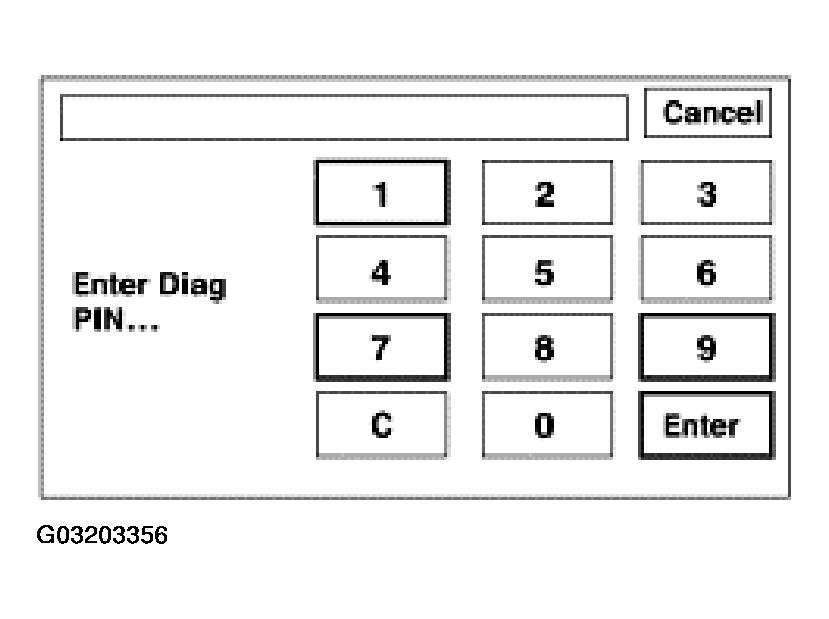

     Fig 2: Identifying Display Of Reverse Signal Input (2 Of 5)

     Courtesy of FORD MOTOR CO.
   • Select Navigation Info.

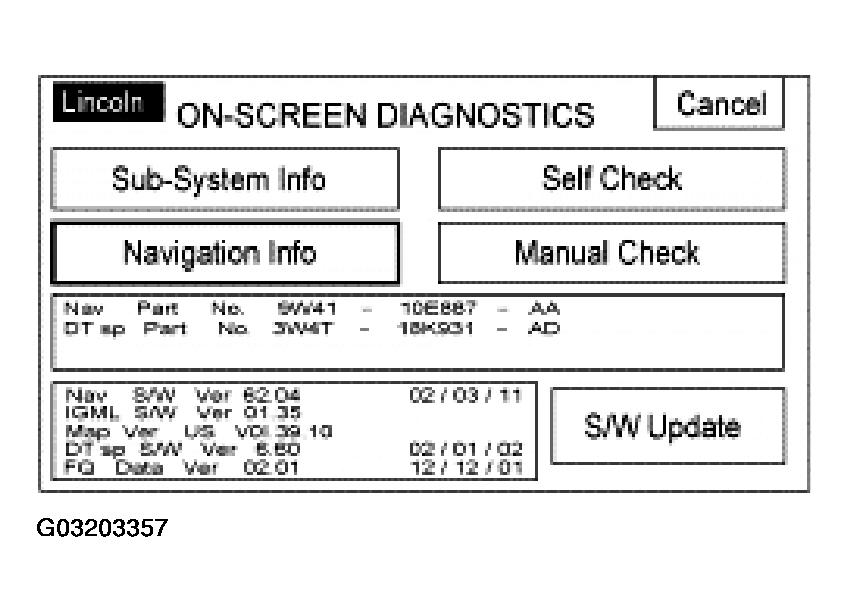

     Fig 3: Identifying Display Of Reverse Signal Input (3 Of 5)

     Courtesy of FORD MOTOR CO.
   • Select Vehicle Signals.

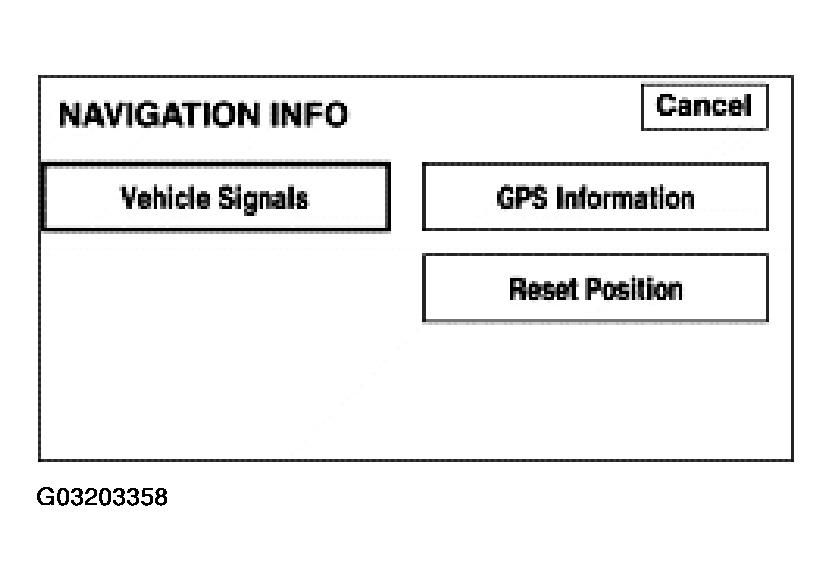

     Fig 4: Identifying Display Of Reverse Signal Input (4 Of 5)

     Courtesy of FORD MOTOR CO.
