Position the valve spring and the valve spring retainers.
Install the special tool between the valve spring coils to prevent valve stem seal damage.

Fig 1: Installing Special Tool Between Valve Spring Coils
Courtesy of FORD MOTOR CO.
Use the special tool to compress the valve spring. Install the valve spring retainer keys.

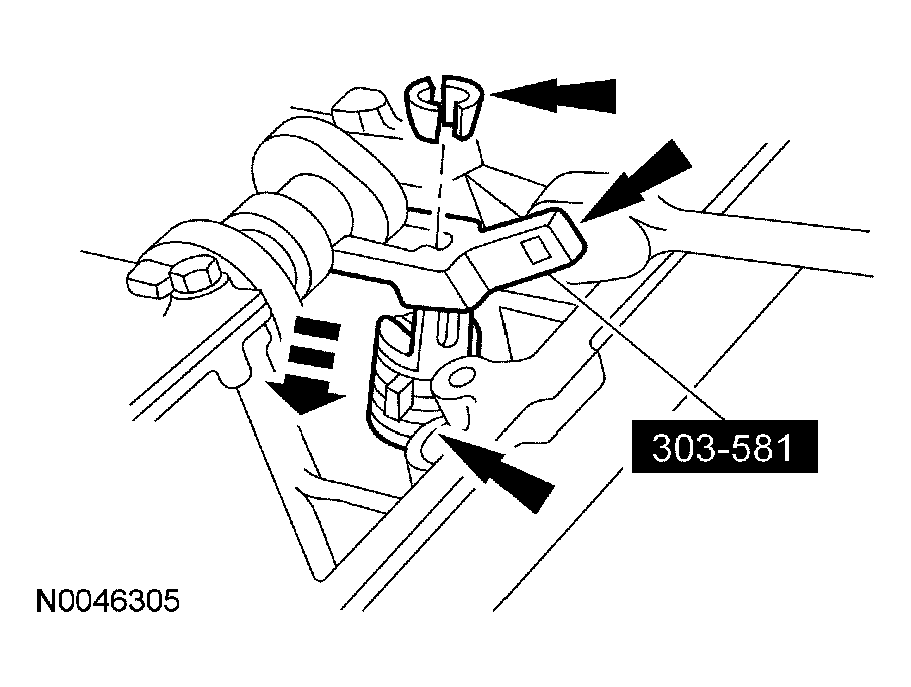

Fig 2: Installing Valve Spring Retainer Keys
Courtesy of FORD MOTOR CO.
Remove the special tools.
Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
Install the spark plugs. For additional information, refer to ENGINE IGNITION .

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

If equipped with fire suppression system, repower the system.
