Cylinder Head: Assembly

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Do not use metal scrapers or other tools to clean the cylinder head.
  1. Use a plastic scraper and metal surface cleaner to clean the cylinder head.

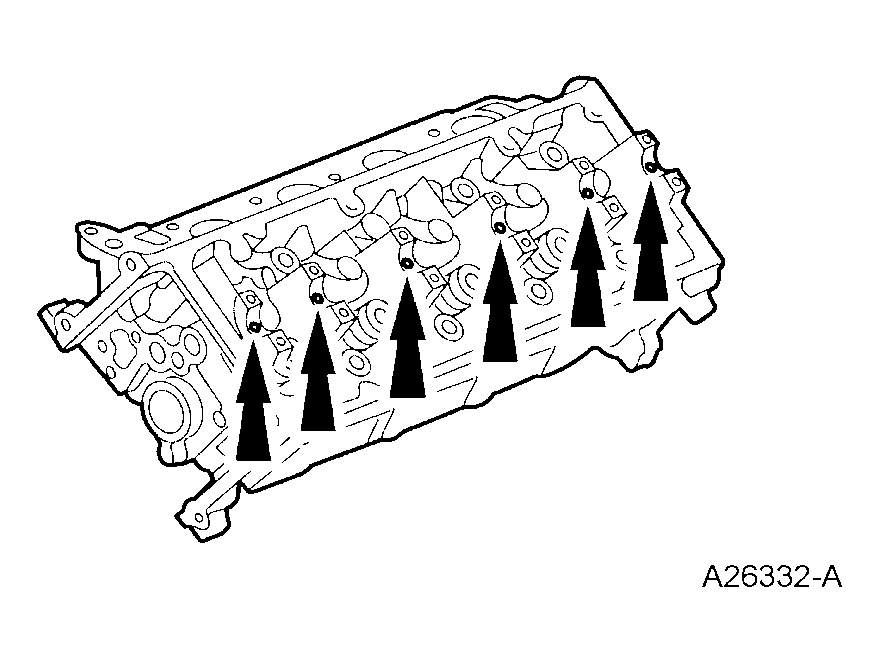

  2. Lubricate the camshaft journals with clean engine oil.
    Fig 1: Identifying Camshaft Journal Lube Passages
    G03881890Courtesy of FORD MOTOR CO.

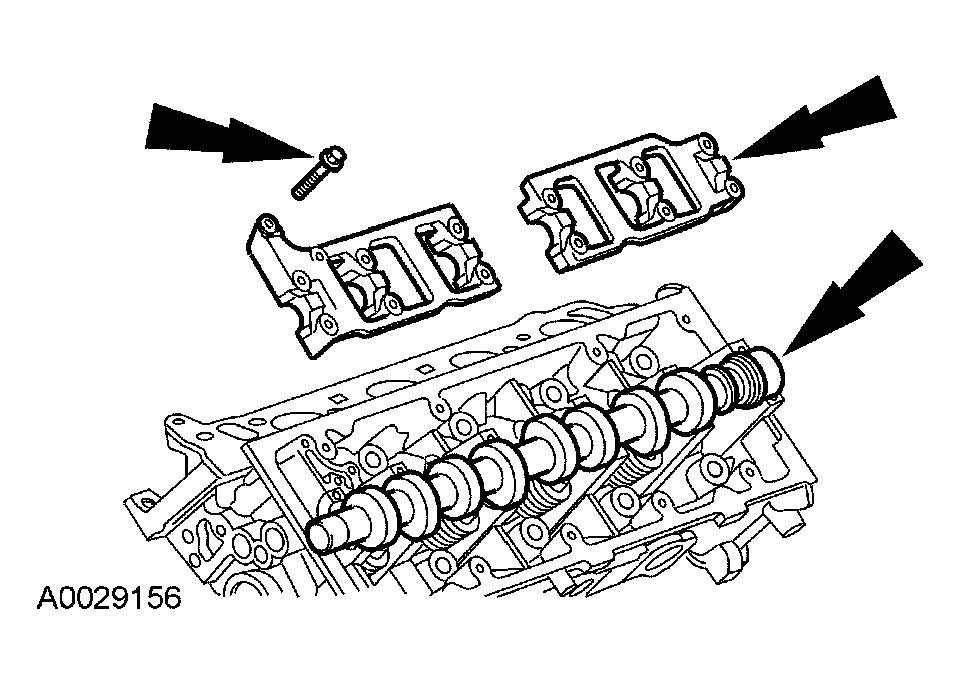

  3. Install the camshaft and the camshaft bearing caps.
    • Lubricate with clean engine oil and position the camshaft bearing caps.
    • Install the bolts loosely.
      Fig 2: Installing Camshaft And Camshaft Bearing Caps
      G04583787Courtesy of FORD MOTOR CO.
  4. Tighten the bolts in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).

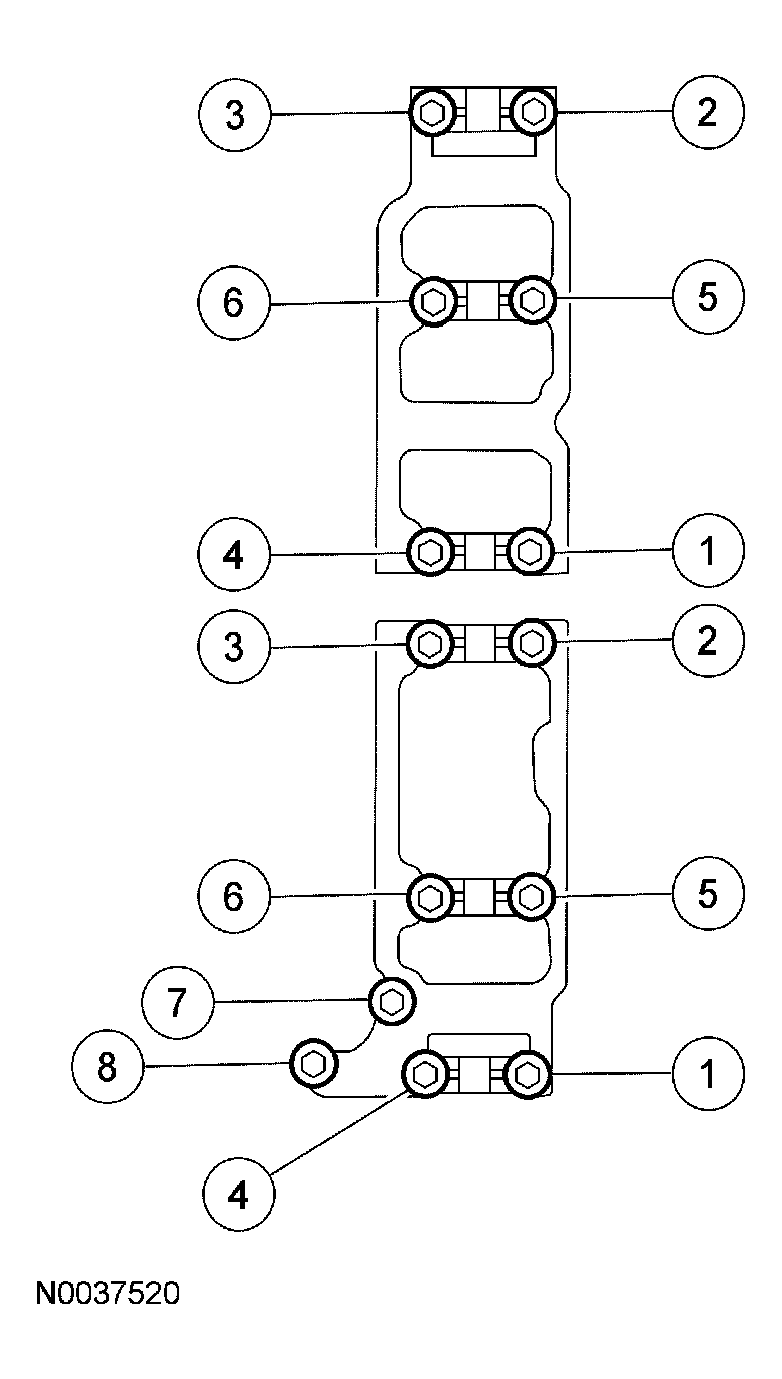

      Fig 3: Tightening Camshaft Bearing Cap Bolts In Sequence
      G04583788Courtesy of FORD MOTOR CO.

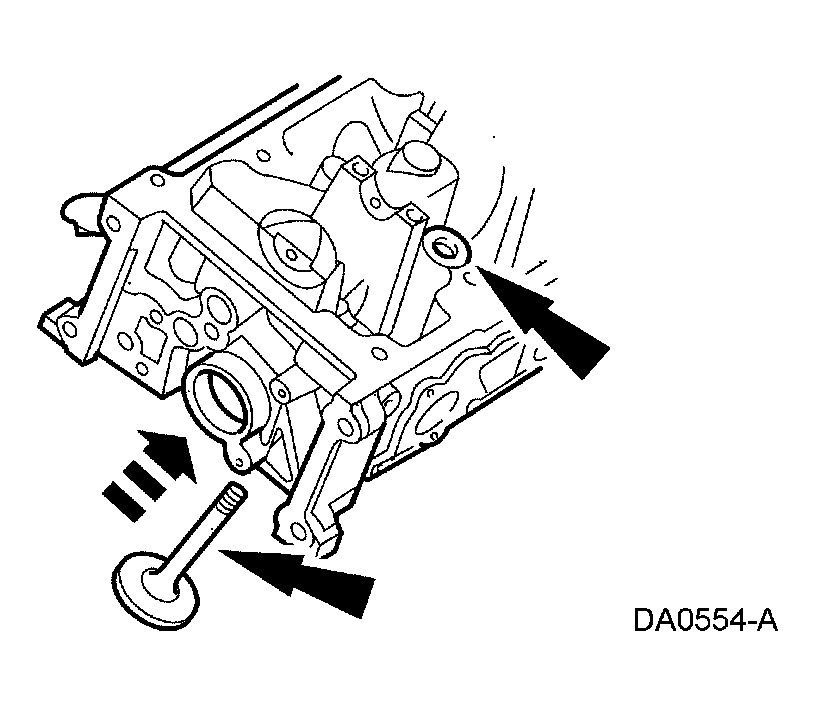

  5. Install the valves in the valve guides located in the cylinder head.
    Fig 4: Tightening Valves In Valve Guides
    G04583789Courtesy of FORD MOTOR CO.

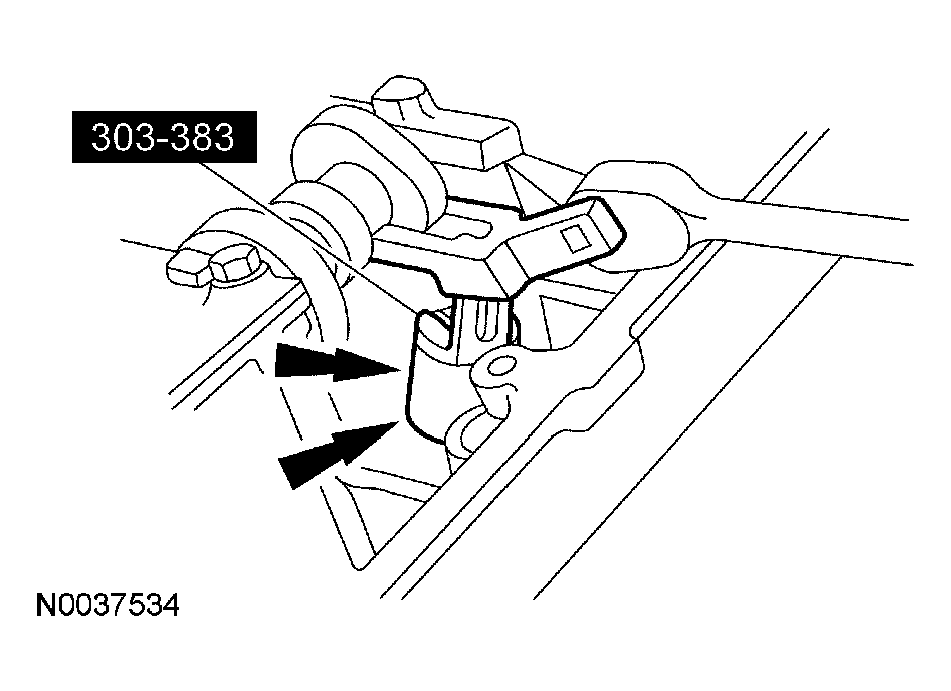

  6. Use the special tool to install the valve stem seals.
    Fig 5: Installing Valve Stem Seals
    G04583790Courtesy of FORD MOTOR CO.

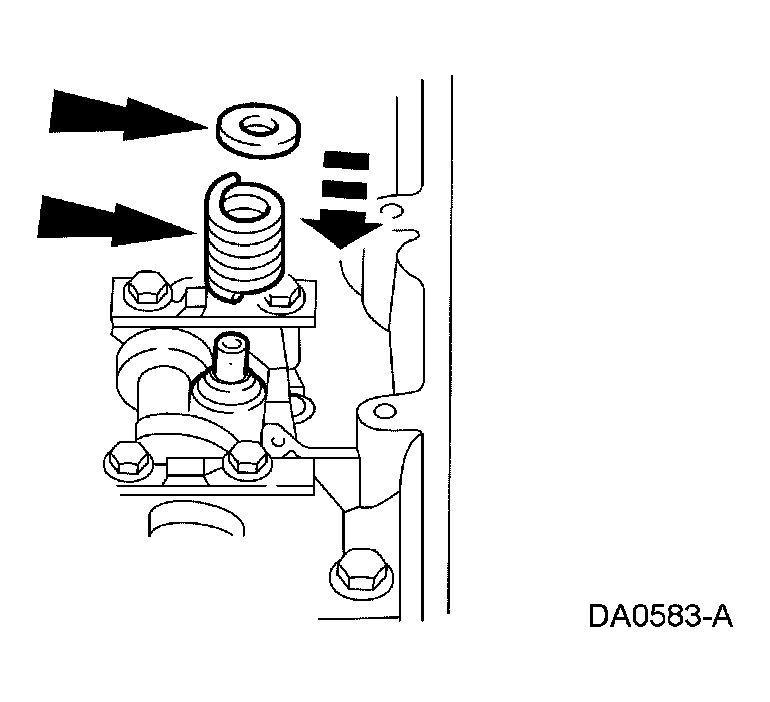

  7. Install the valve springs and the valve spring retainers onto the valves.
    Fig 6: Locating Valve Springs And Valve Spring Retainers
    G04583791Courtesy of FORD MOTOR CO.
  8. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 7: Installing Special Tool Between Valve Spring Coils
    G03962476Courtesy of FORD MOTOR CO.

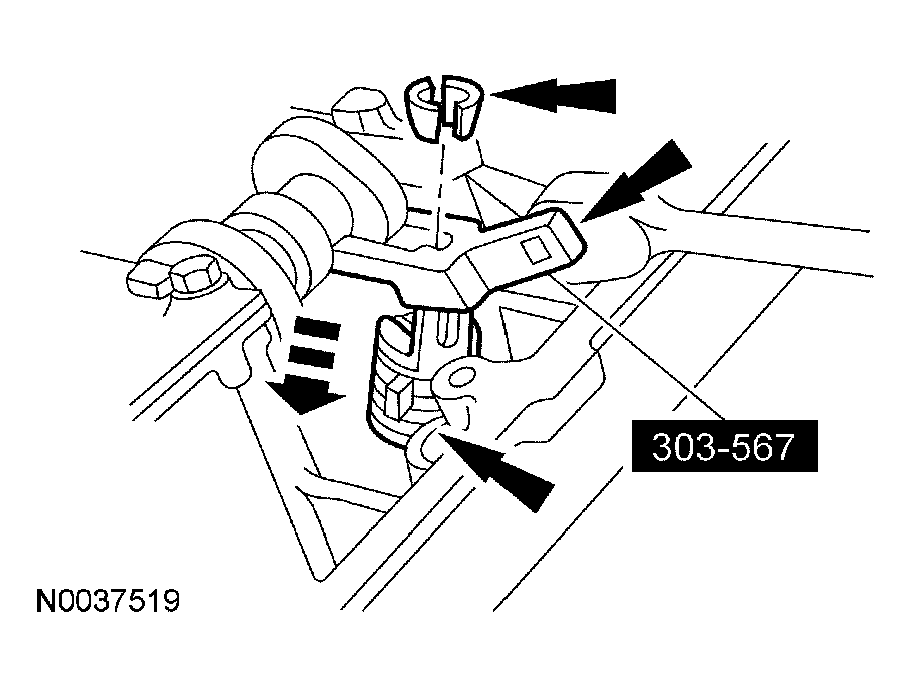

  9. Use the special tool to compress the valve springs, and install the valve spring retainer keys.
    Fig 8: Compressing Valve Springs
    G04583793Courtesy of FORD MOTOR CO.

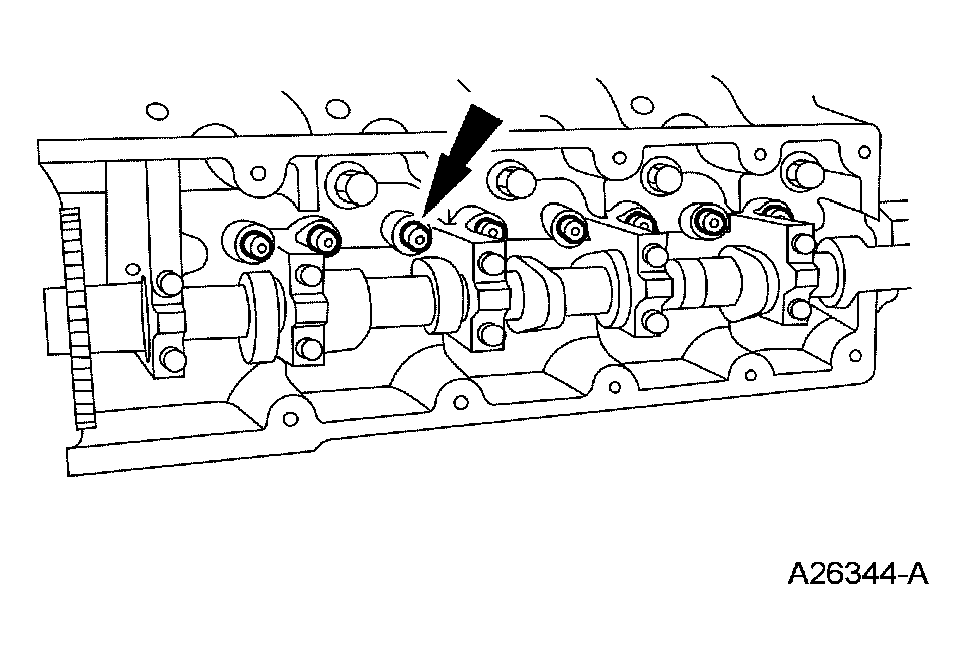

  10. Install the hydraulic lash adjusters in their original locations.
    Fig 9: Locating Hydraulic Lash Adjusters
    G04583838Courtesy of FORD MOTOR CO.

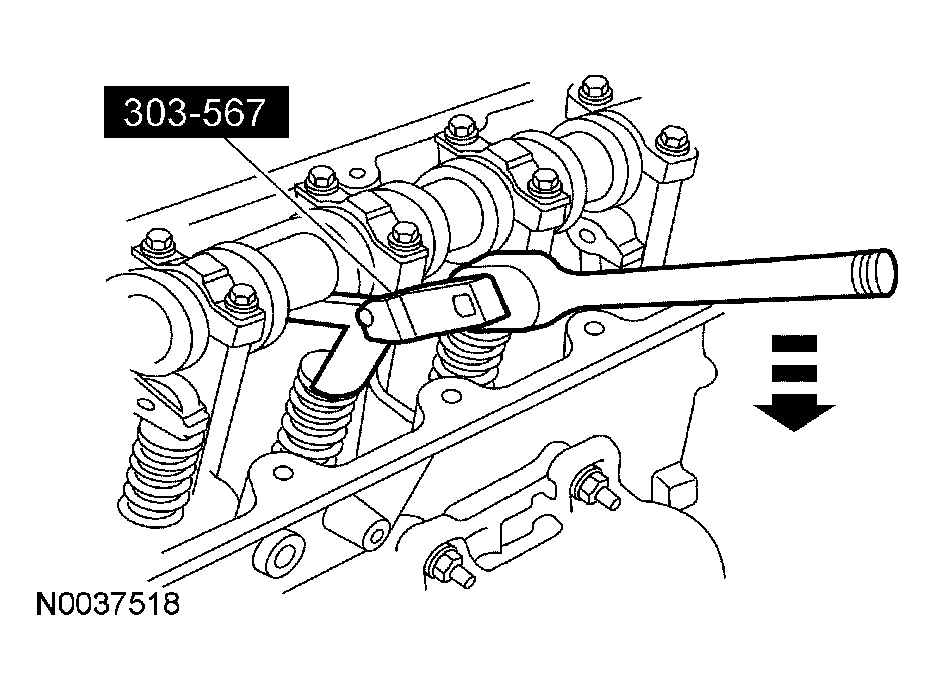

  11. Using the special tool, install the roller followers in their original locations.
    Fig 10: Installing Roller Followers Using Special Tool
    G04583795Courtesy of FORD MOTOR CO.
  12. Remove the special tool.
    Fig 11: Installing Special Tool Between Valve Spring Coils
    G03962476Courtesy of FORD MOTOR CO.
