Climate Control System: Notes
Refer to AIR CONDITIONING for schematic and connector information.
| Worldwide Diagnostic System (WDS) Vehicle Communication Module (VCM) with appropriate adapters, or equivalent diagnostic tool |
|
| Fluke 77 III Automotive Meter 105-R0056 or equivalent | |
| R-134a Manifold Gauge Set 176-R032A or equivalent | |

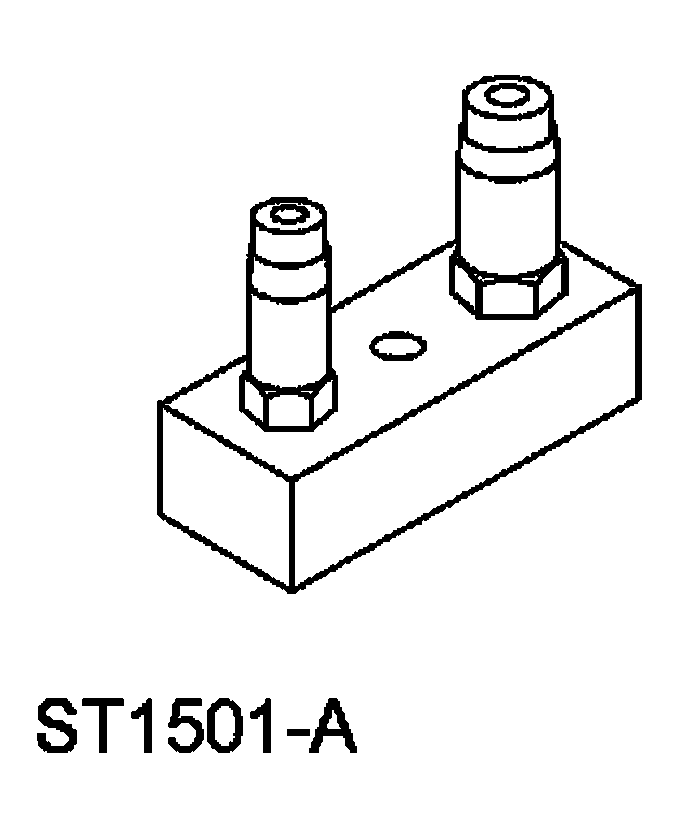

| A/C Pressure Test Adapter 412-093 (T94P-19623-E) | |

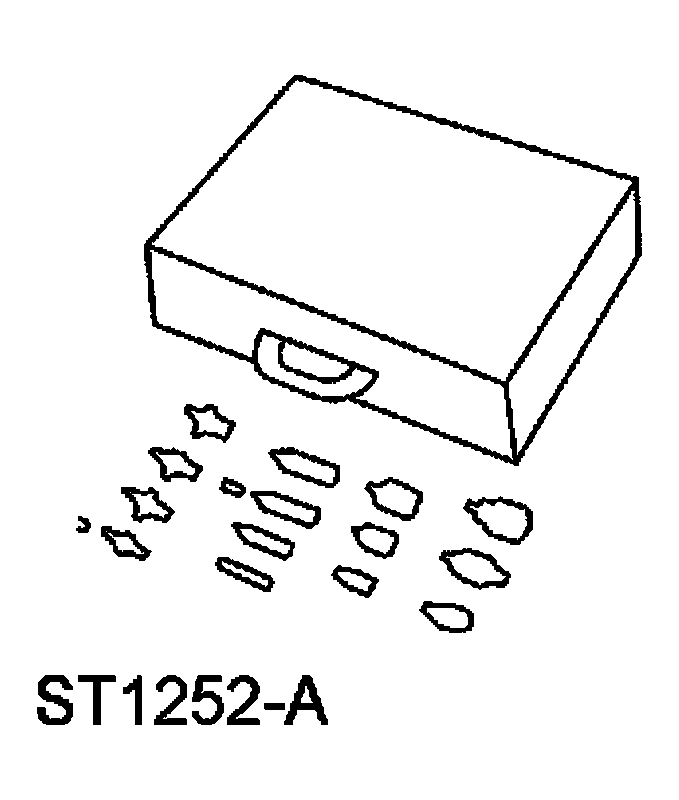

| Set, A/C Fittings 412-DS028 (014-00333, D93L-19703B) or equivalent | |
| Refrigerant Leak Detector 216-00001 or equivalent | |
| Pressure Test Kit 014-R1072 or equivalent | |

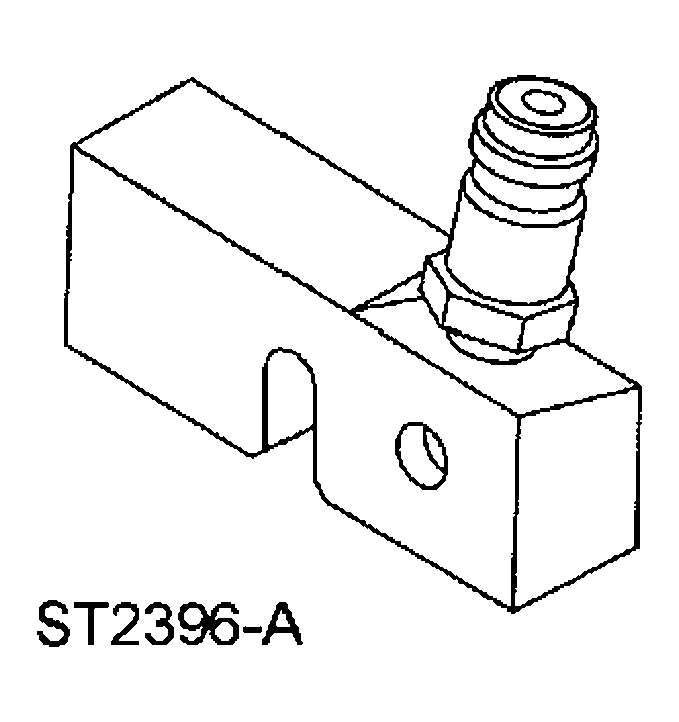

| Vacuum Check Fitting, TXV 412-129 or equivalent |
