2000 Ford Contour SVTFACTORY OEM SERVICE PROCEDURE

Cylinder Block Distortion

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CYLINDER BLOCK DISTORTION SPECIAL TOOLS

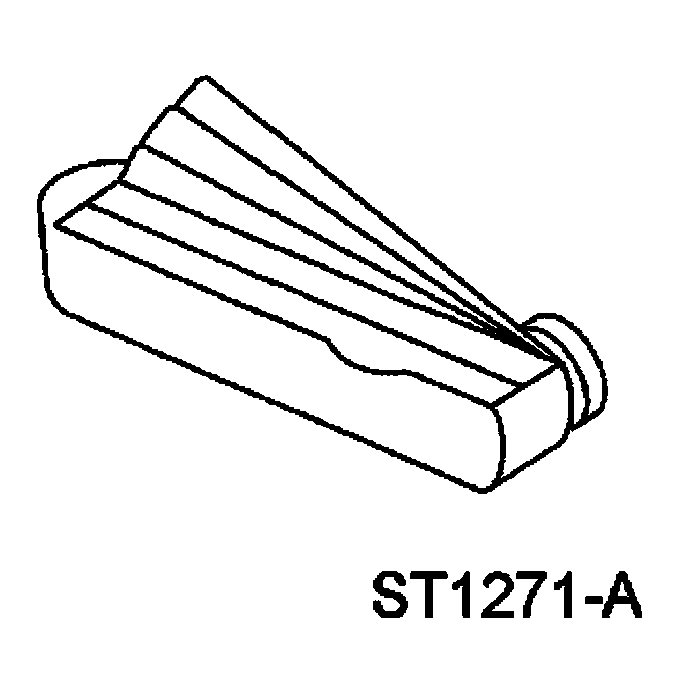

	Feeler Gauge Set 303-D027 (D81L-4201-A) or equivalent

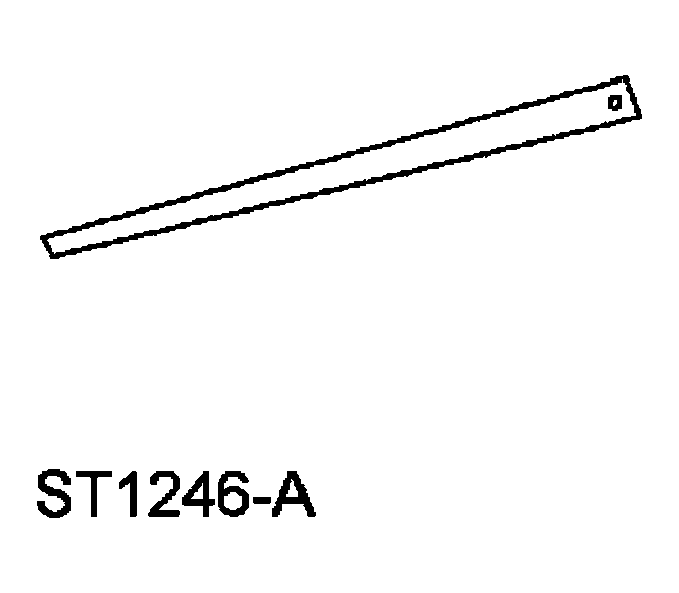

	Straight Edge 303-D039 (D83L-4201-A) or equivalent

Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new short block assembly.

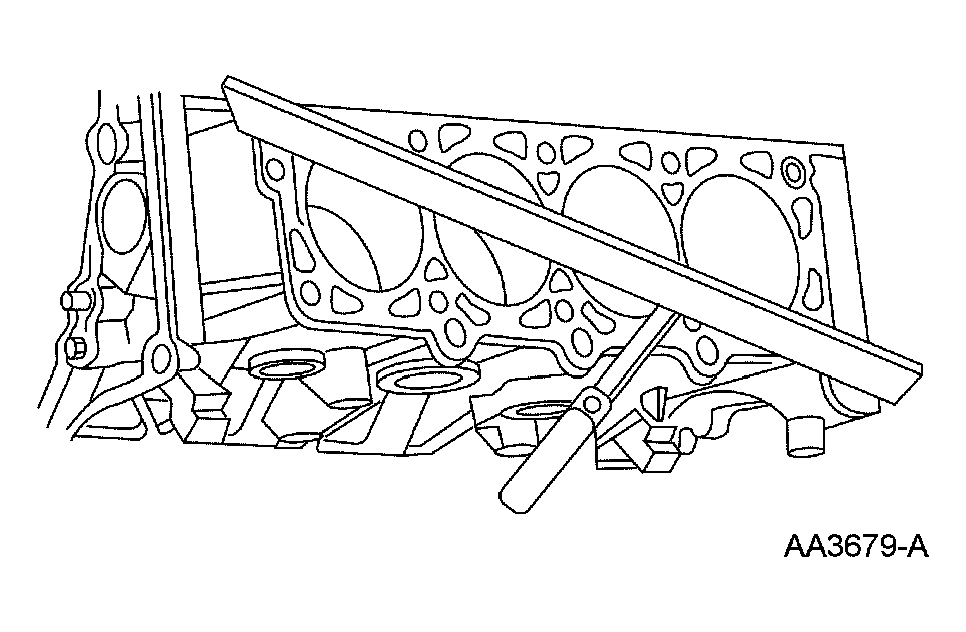

Fig 1: Inspecting Cylinder Block For Flatness

Courtesy of FORD MOTOR CO.
