Master Switch

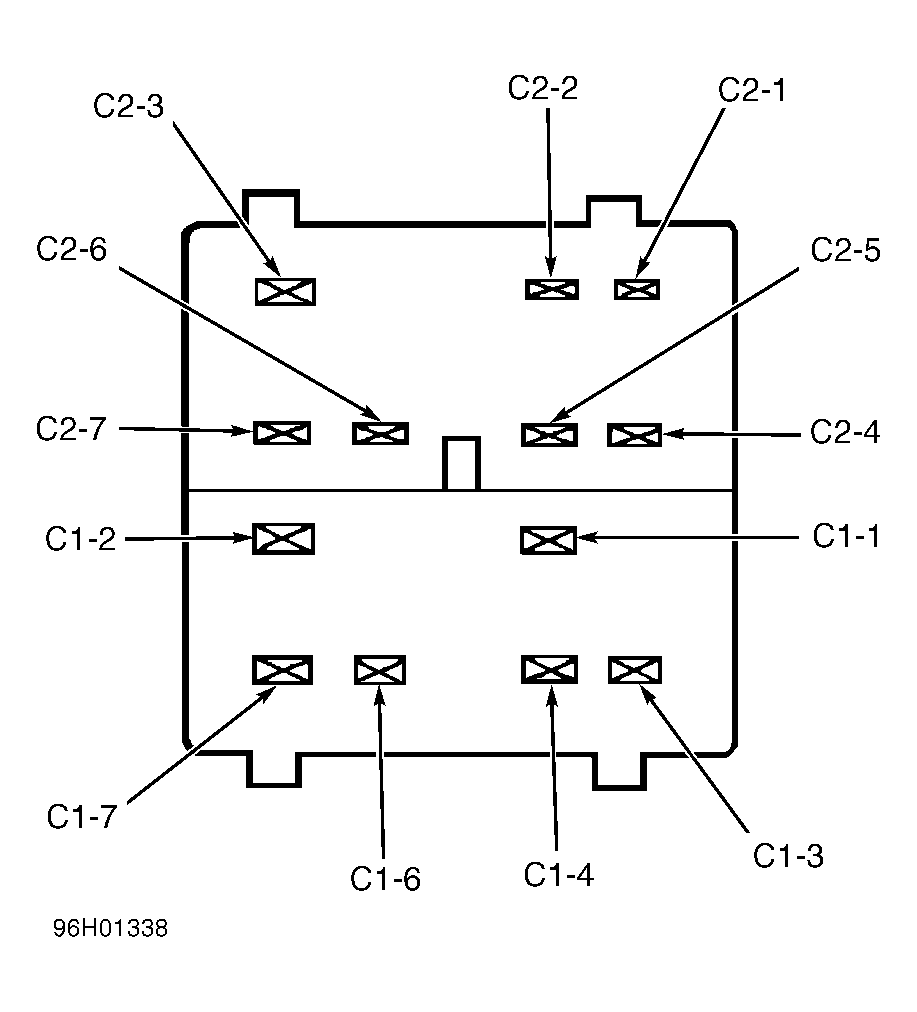

Remove master switch from vehicle. Measure resistance between specified terminals while operating switch. See MASTER SWITCH TESTING table. See Fig 1 . Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.
| Switch Position | Continuity Between Terminals | |
|---|---|---|
| Neutral | C1-1, C1-3, C1-4, C1-6, C2-4, C2-5, C2-6 & C2-7 | |
| Lock-Out | C1-2 & C2-3 | |
| Left Front | ||
| Up | C1-2 & C1-7; C1-1 & C1-6 | |
| Down | C1-2 & C1-6; C1-1 & C1-7 | |
| Right Front | ||
| Up | C1-2 & C1-3; C1-1 & C1-4 | |
| Down | C1-2 & C1-4; C1-1 & C1-3 | |
| Left Rear | ||
| Up | C1-2 & C2-6; C1-1 & C2-7 | |
| Down | C1-2 & C2-7; C1-1 & C2-6 | |
| Right Rear | ||
| Up | C1-2 & C2-4; C1-1 & C2-5 | |
| Down | C1-2 & C2-5; C1-1 & C2-4 | |
