Power Window Single Switch

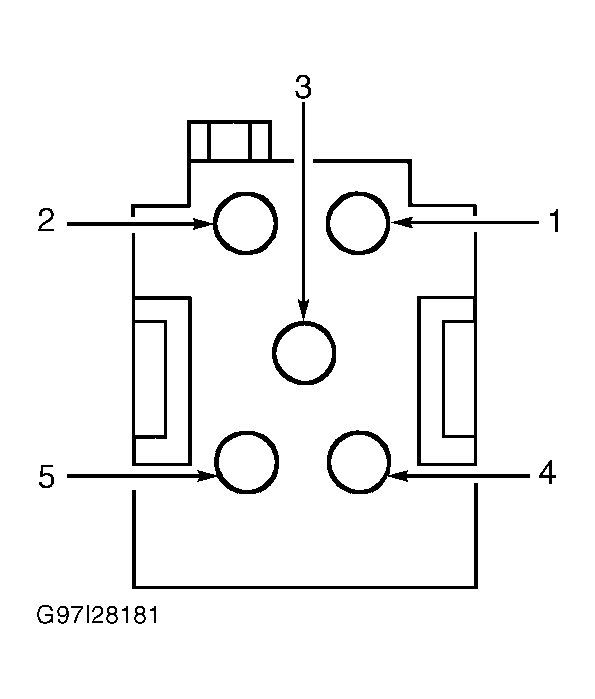

Remove single switch from vehicle. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Measure resistance between specified terminals while operating switch. See SINGLE SWITCH TESTING table. See Fig 1. Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 1 & 2; 4 & 5 |
| Up | 1 & 3; 4 & 5 |
| Down | 3 & 5; 1 & 2 |
