One-Touch Down Relay

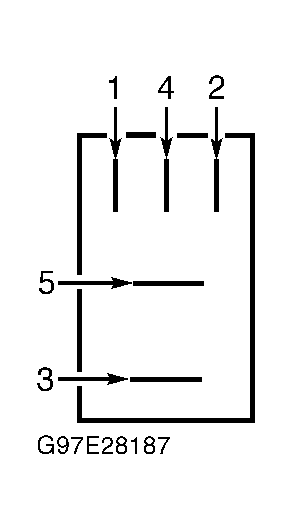

Remove one-touch down relay (located in relay module, on left side of glove box). Using an ohmmeter, check continuity between relay terminals No. 1 and 2. See Fig 1. Continuity should always exist. Check continuity between relay terminals No. 3 and 4. Continuity should exist. Apply battery voltage and ground between relay terminals No. 1 and 2. Continuity should now exist between relay terminals No. 3 and 5. Replace relay if it does not test as specified. See Fig 1.
