Power Window Switch

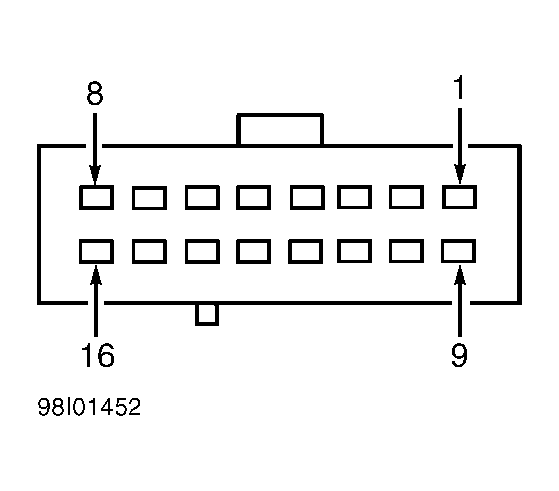

Remove window switch from vehicle. See POWER WINDOW SWITCH R & I under REMOVAL & INSTALLATION. Using ohmmeter, check for continuity between switch terminals in specified switch positions. See appropriate POWER WINDOW SWITCH TESTING table. See Fig 1 , Fig 2 or Fig 3 . Replace power window switch if it does not test as specified.
| Switch Position | Continuity Between Terminals |
|---|---|
| Neutral | C74a-3, C74a-4, C74a-5, C74a-6, C74a-9, C74a-15, C74a-16, C74b-2, C74b-3, C74b-4 |
| Left Front Up | C74a-9 & C74b-2 |
| Left Front Down | C74a-9 & C74b-3; C74a-11 & C74b-2 |
| Right Front Up | C74a-3 & C74b-2; C74a-4 & C74b-3 |
| Right Front Down | C74a-4 & C74b-2; C74a-3 & C74b-3 |
| Left Rear Up | C74a-15 & C74b-4; C74a-16 & C74b-3 |
| Left Rear Down | C74a-16 & C74b-4; C74a-15 & C74b-3 |
| Right Rear Up | C74a-5 & C74b-4; C74a-6 & C74b-3 |
| Right Rear Down | C74a-5 & C74b-3; C74a-6 & C74b-4 |
