Mirror Control Switch

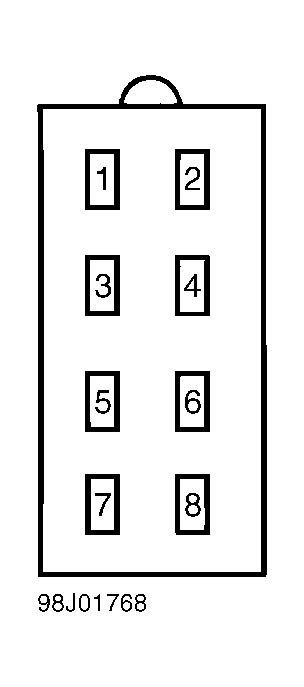

Remove mirror control switch. Measure resistance between specified terminals while operating switch in appropriate direction. See MIRROR SWITCH TEST table. See Fig 1 . Resistance in all tests should be less than 5 ohms. If switch fails any portion of test, replace switch.
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver Mirror | ||
| Up | 3 & 8; 5 & 6 | |
| Down | 3 & 6; 5 & 8 | |
| Left | 2 & 3; 5 & 6 | |
| Right | 3 & 6; 2 & 5 | |
| Passenger Mirror | ||
| Up | 3 & 7; 5 & 6 | |
| Down | 3 & 6; 5 & 7 | |
| Left | 3 & 4; 5 & 6 | |
| Right | 3 & 6; 4 & 5 | |
