System Testing: Notes

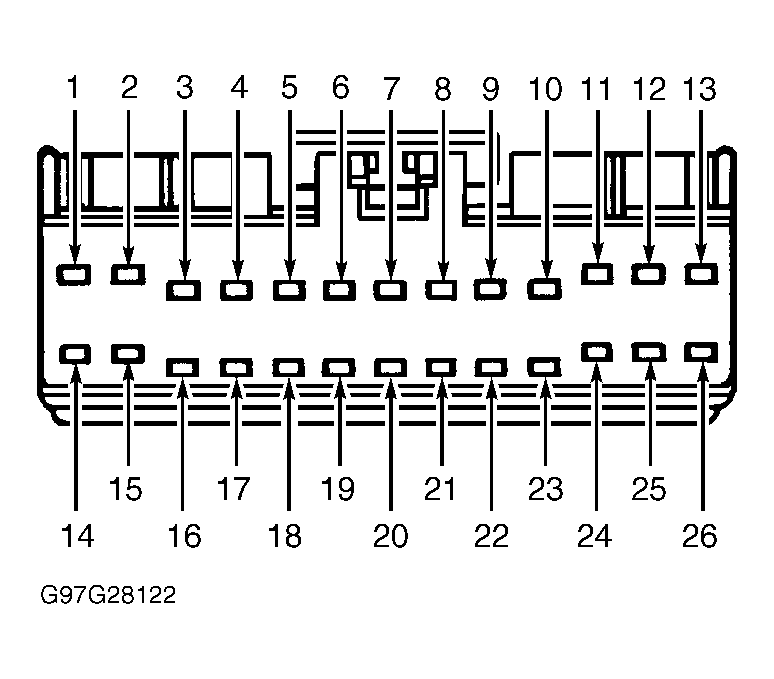

At least one remote transmitter is required for testing. The following tests make references to Remote Anti-theft Personalty (RAP) module connectors and Generic Electronic Module (GEM) connectors. See Fig 1 , Fig 2 and Fig 3 . for connector terminal identification. For additional information, see DOOR LOCKS & TRUNK RELEASE - POWER article.
