1997 Ford Probe Base, StandardFACTORY OEM SERVICE PROCEDURE
Door Lock System Does Not Operate
- Turn ignition off. Inspect ROOM (15-amp) and METER (15-amp) fuses located in interior fuse box. If fuses are okay, go to step 4). If either fuse is blown, go to next step.
- Replace blown fuse(s). Turn ignition on. If fuse(s) fail again, go to next step. If fuses are okay, go to step 4).

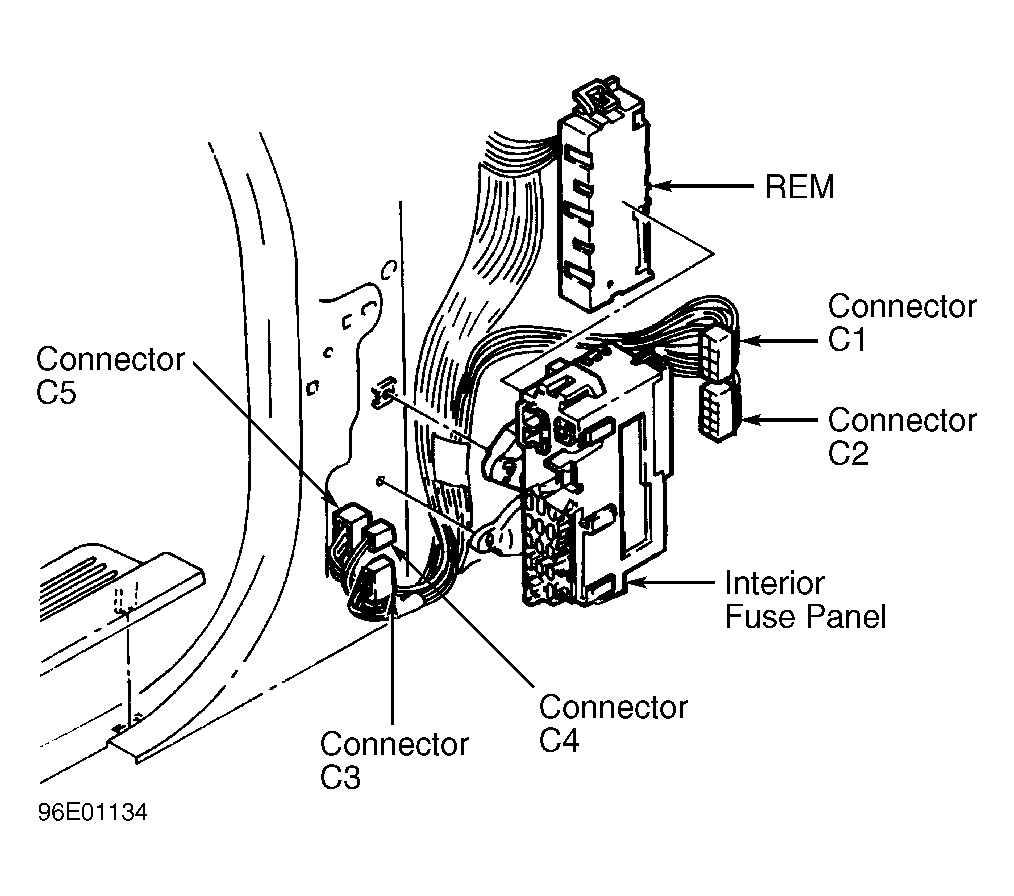

- Turn ignition off. Disconnect REM connector and interior fuse panel connector C2. See Fig 1 . Measure resistance between Blue/Red wire at interior fuse panel C2 connector and ground. Measure resistance between Black/Yellow wire at interior fuse panel C2 connector and ground. If resistances are less than 5 ohms, repair wire(s) in question. If resistances are more than 5 ohms, replace fuse(s) and go to next step.
