Master Switch

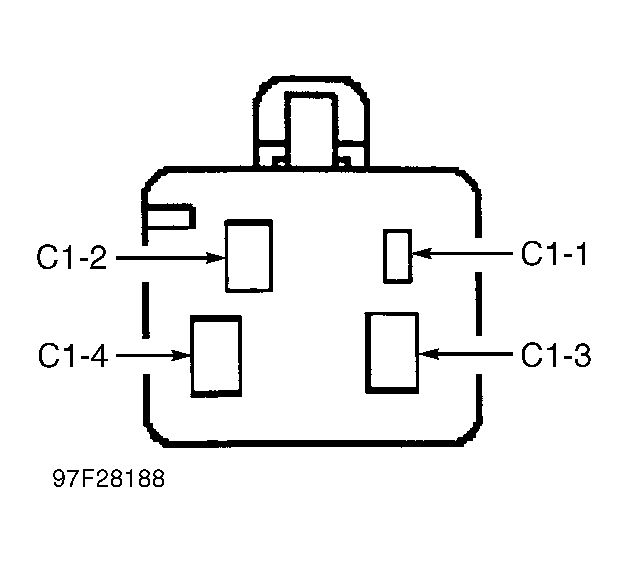

Remove master switch from vehicle. Measure resistance between specified terminals while operating switch. See MASTER SWITCH TESTING TABLE. Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified. See Fig 1 and Fig 2 .
| Switch Position | Continuity Between Connector - Terminal No. | |
|---|---|---|
| Neutral | C1-3 & C2-3; C1-2 & C2-3; C2-2 & C2-3; C2-1 & C2-3; C2-4 & C2-5 | |
| Left | ||
| Up | C1-2 & C1-4; C1-3 & C2-3 | |
| Down | C1-3 & C1-4; C1-2 & C2-3 | |
| Right | ||
| Up | C2-1 & C1-4; C2-2 & C2-3 | |
| Down | C2-2 & C1-4; C2-1 & C2-3 | |
