Single Switch

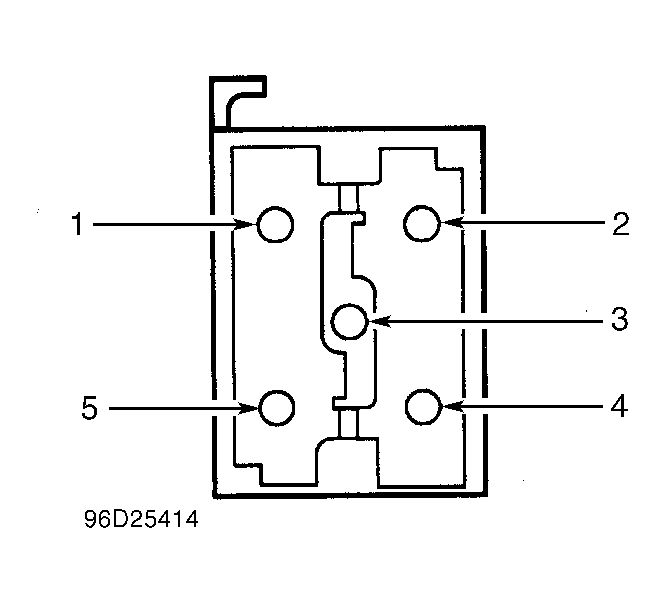

Remove single switch from vehicle. Measure resistance between specified terminals while operating switch. See SINGLE SWITCH TESTING TABLE. See Fig 1. Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Neutral | 1 & 5; 2 & 4 |
| Up | 2 & 3 |
| Down | 3 & 5 |
