Power Window Switch

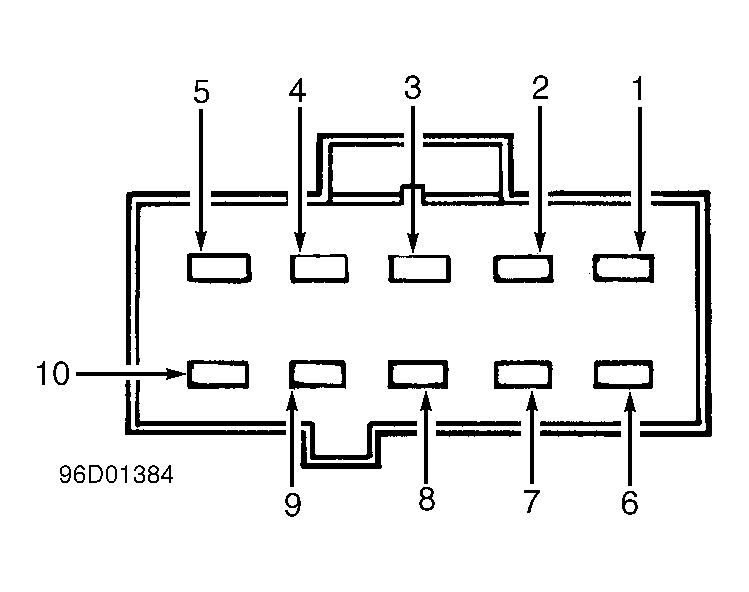

Remove window switch from vehicle. See appropriate POWER WINDOW SWITCH under REMOVAL & INSTALLATION . Using ohmmeter, check for continuity between switch terminals in specified switch positions. See POWER WINDOW SWITCH TESTING TABLE. See Fig 1 , Fig 2 or Fig 3 . Replace power window switch if it does not test as specified.
| Switch Position | (1) Continuity Between Terminals No. | ||
|---|---|---|---|
| Neutral | A-1, A-2, A-3, A-4, A-6, A-7, A-8, A-9 & B-3 | ||
| Right Front Up | A-2 & B-2; A-1 & B-3 | ||
| Right Front Down | A-1 & B-2; A-2 & B-3 | ||
| Right Rear Up | A-4 & B-2; A-3 & B-3 | ||
| Right Rear Down | A-3 & B-2; A-4 & B-3 | ||
| Left Rear Up | A-9 & B-2; A-8 & B-3 | ||
| Left Rear Down | A-8 & B-2; A-9 & B-3 | ||
| Left Front Up | A-6 & B-2; A-7 & B-3 | ||
| Left Front Down | A-7 & B-2; A-6 & B-3 | ||
|
|||
