1996 Ford Probe Base, AutomaticFACTORY OEM SERVICE PROCEDURE

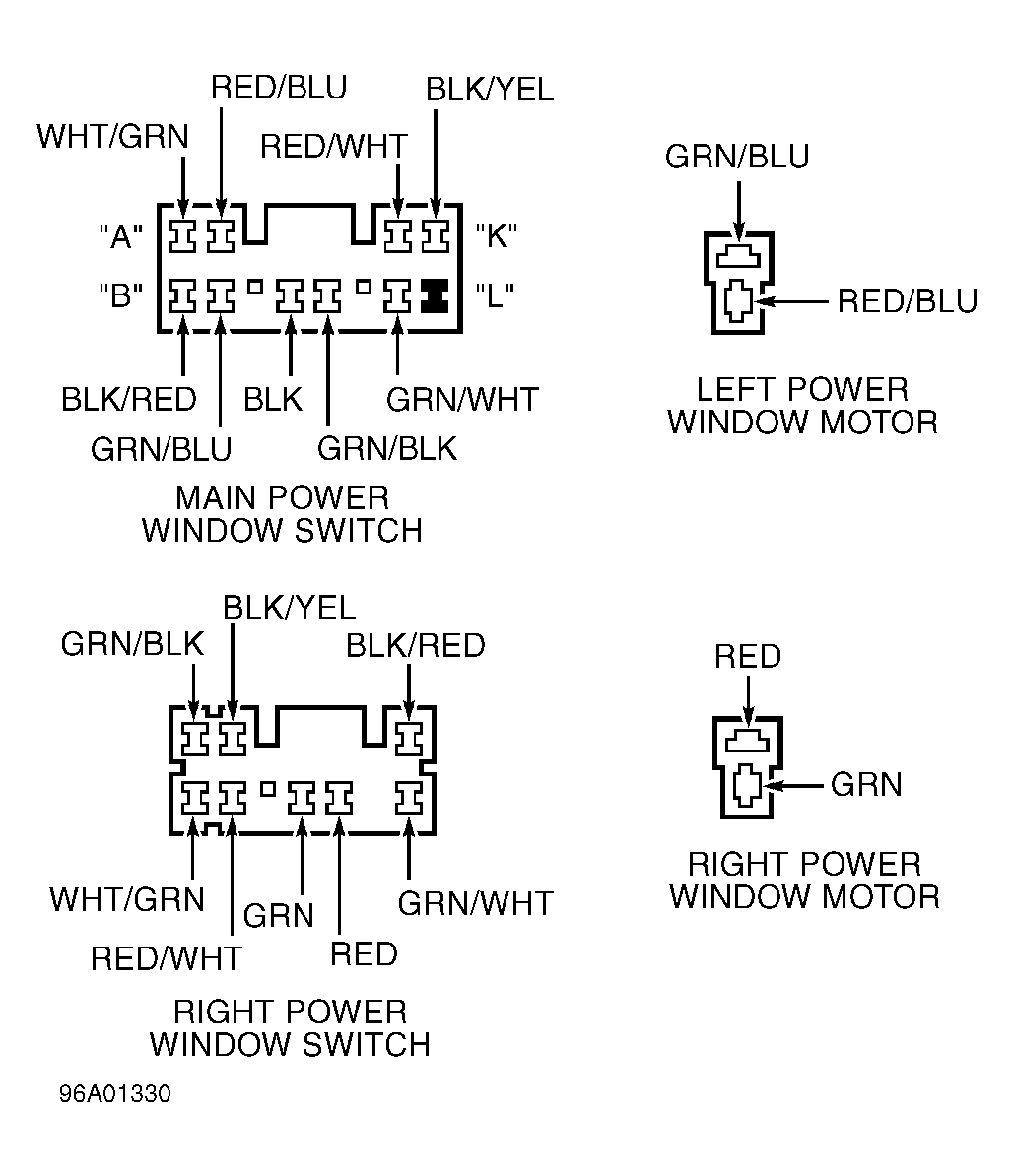

Circuit & Terminal Identification
MASTER (MAIN) SWITCH CIRCUITS
| Pin | Circuit | Function |
|---|---|---|
| A | WHT/GRN | Door Lock Switch Power |
| B | BLK/RED | Master Switch Power |
| C | RED/BLU | Left Window Feed/Return |
| D | GRN/BLU | Left Window Feed/Return |
| F | BLK | Ground |
| H | GRN/BLK | Door Lock Switch Output |
| I | RED/WHT | Right Window Feed/Return |
| J | GRN/WHT | Right Window Feed/Return |
| K | BLK/YEL | Power Supply |
| L | ***** | Not Used |
