Power Circuits

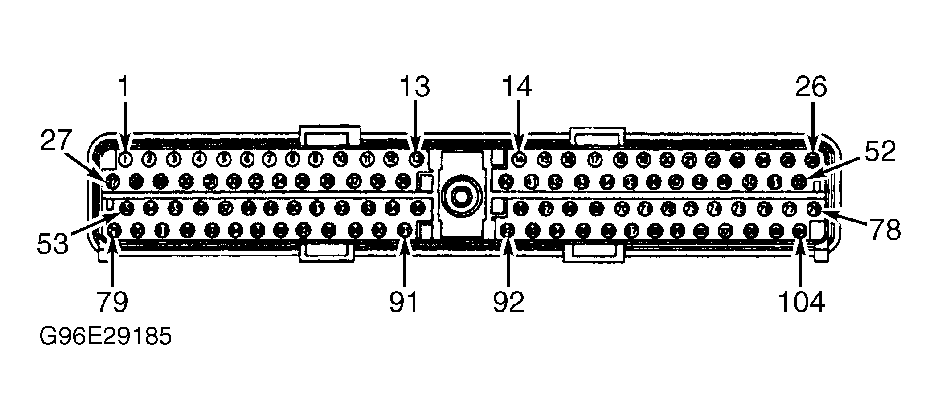

Turn ignition off. Using a DVOM, check for battery voltage between ground and PCM terminal No. 55 (KAPWR). Turn ignition switch to START or RUN position. Check for battery voltage between ground and PCM connector terminals No. 71 and 97 (VPWR). If battery voltage is not present, power is not being supplied from EEC power relay. See CIRCUIT TEST B under CIRCUIT TESTS in appropriate G - TEST W/CODES article.
| Application | Location |
|---|---|
| Aerostar, Crown Victoria, Bronco, Econoline, Grand Marquis, Pickup & Town Car | Left Rear Corner Of Engine Compartment, Near Brake Booster |
| Continental | Rear Center Of Engine Compartment Under Splash Cover |
| Contour & Mystique | Right Rear Corner Of Engine Compartment, Behind Power Steering Reservoir |
| Cougar, Mustang & Thunderbird | In Passenger Compartment, Behind Right Kick Panel |
| Escort & Tracer | In Passenger Compartment, Below Center Of Instrument Panel |
| Explorer, Mountaineer, Ranger, Sable, Taurus & Windstar | In Engine Compartment, Right Rear Side On Cowl |
| Mark VIII | In Passenger Compartment, On Left Side Cowl Behind Instrument Panel |
