1995 Ford Taurus V6-232 3.8LFACTORY OEM SERVICE PROCEDURE
Distributor Cap: Service and Repair
REMOVAL
1. Note location and remove ignition wires from distributor cap as required.
2. Loosen distributor cap hold-down screws.
3. Remove distributor cap straight off distributor to prevent damage to distributor rotor blade and spring.
INSTALLATION

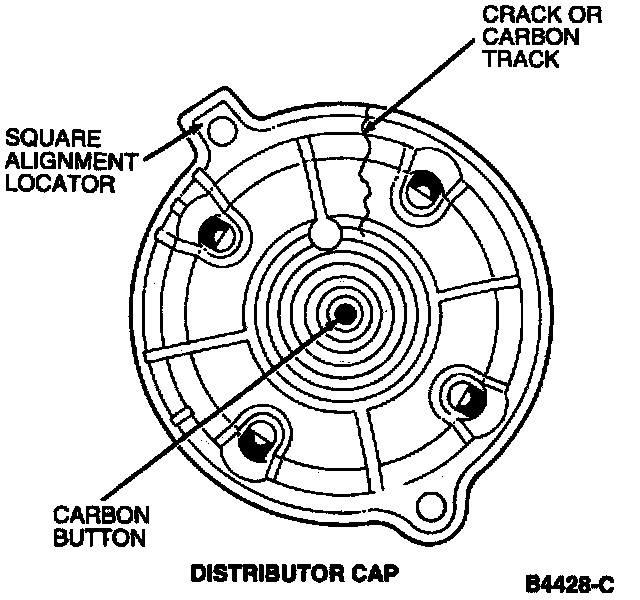

1. Position distributor cap on distributor housing noting the square alignment locator. Tighten hold-down screws to 2.0-2.6 Nm (18-23 in lb).
2. Reinstall any ignition wires that were removed, noting their correct locations on the distributor cap.
Distributor Cap:
1. Note location and remove ignition wires from distributor cap as required.
2. Loosen distributor cap hold-down screws.
3. Remove distributor cap straight off distributor to prevent damage to distributor rotor blade and spring.
INSTALLATION
1. Position distributor cap on distributor housing noting the square alignment locator. Tighten hold-down screws to 2.0-2.6 Nm (18-23 in lb).
2. Reinstall any ignition wires that were removed, noting their correct locations on the distributor cap.
