1995 Ford Taurus V6-232 3.8LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch: Testing and Inspection

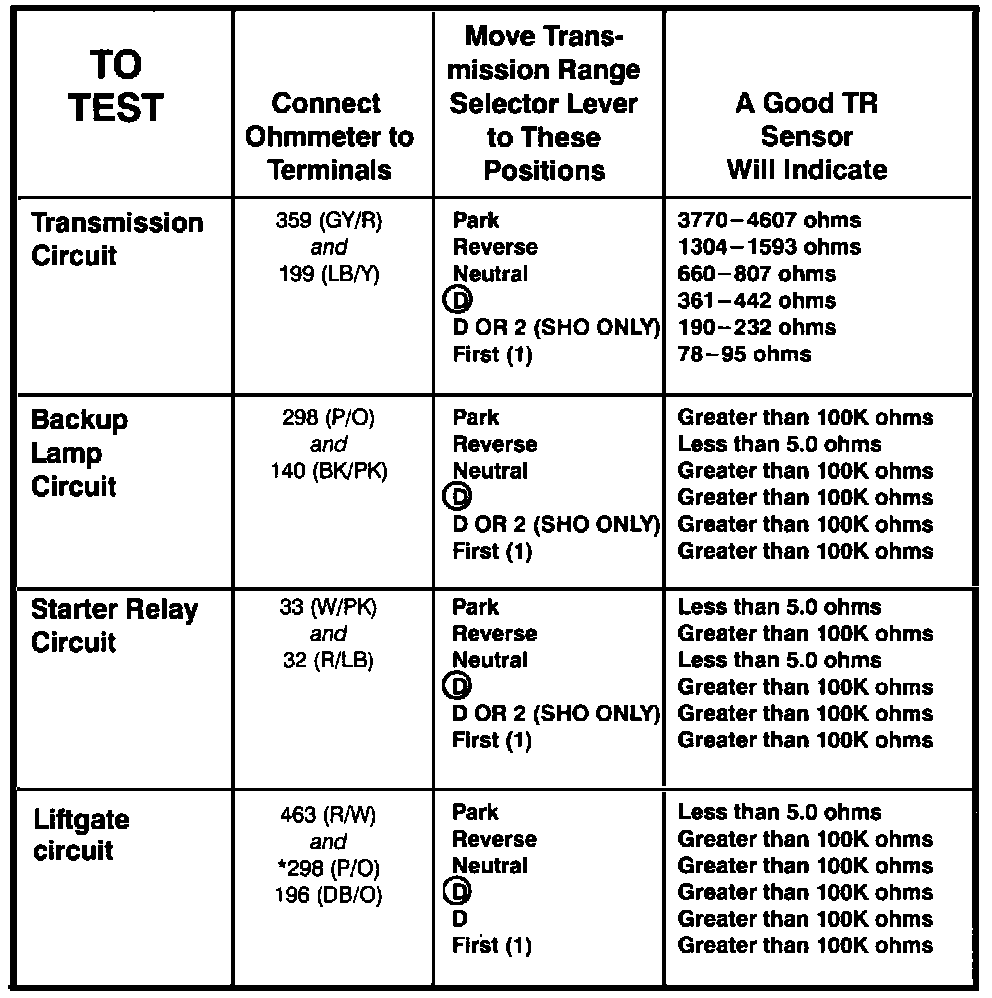

Component Testing Procedure:

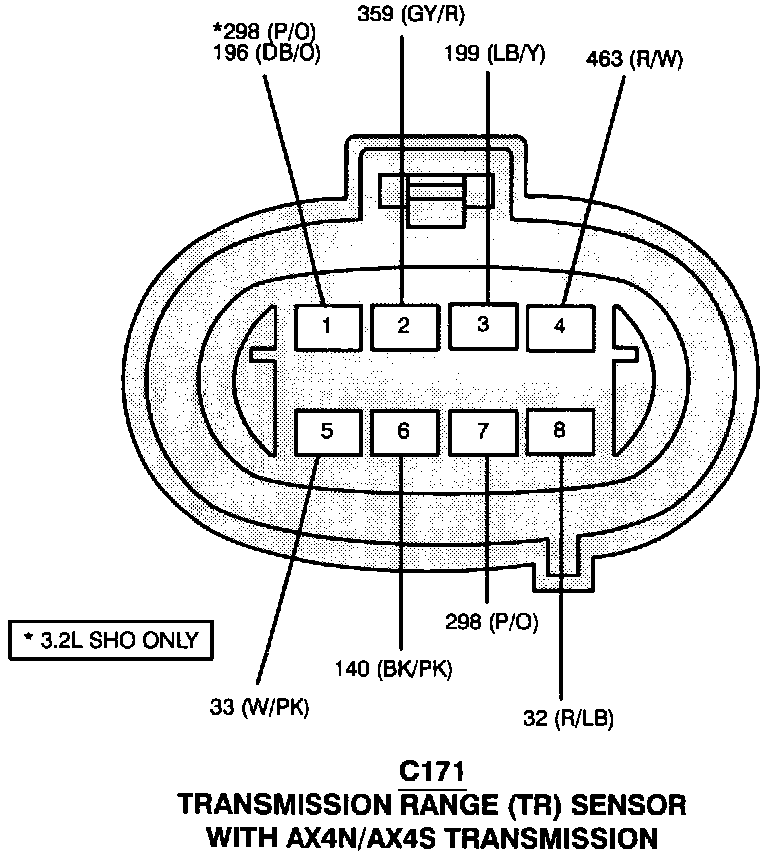

Transmission Range Sensor (With AX4N/AX4S Transmission) - Terminal Locations:

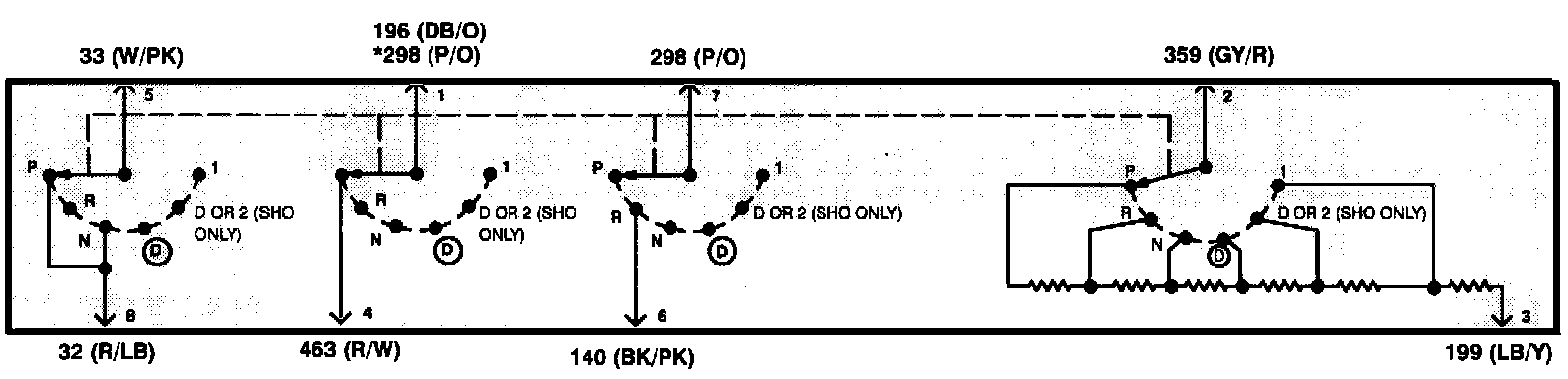

Transmission Range Sensor (With AX4N/AX4S Transmission) - Schematic:
For additional diagnosis of the Transmission Range Sensor, go to Powertrain Management/Computers and Control Systems/Testing and Inspection. Testing and Inspection
