1995 Ford Taurus V6-232 3.8LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Module: Service and Repair
Control Processor, Electronic Door Lock
Removal and Installation

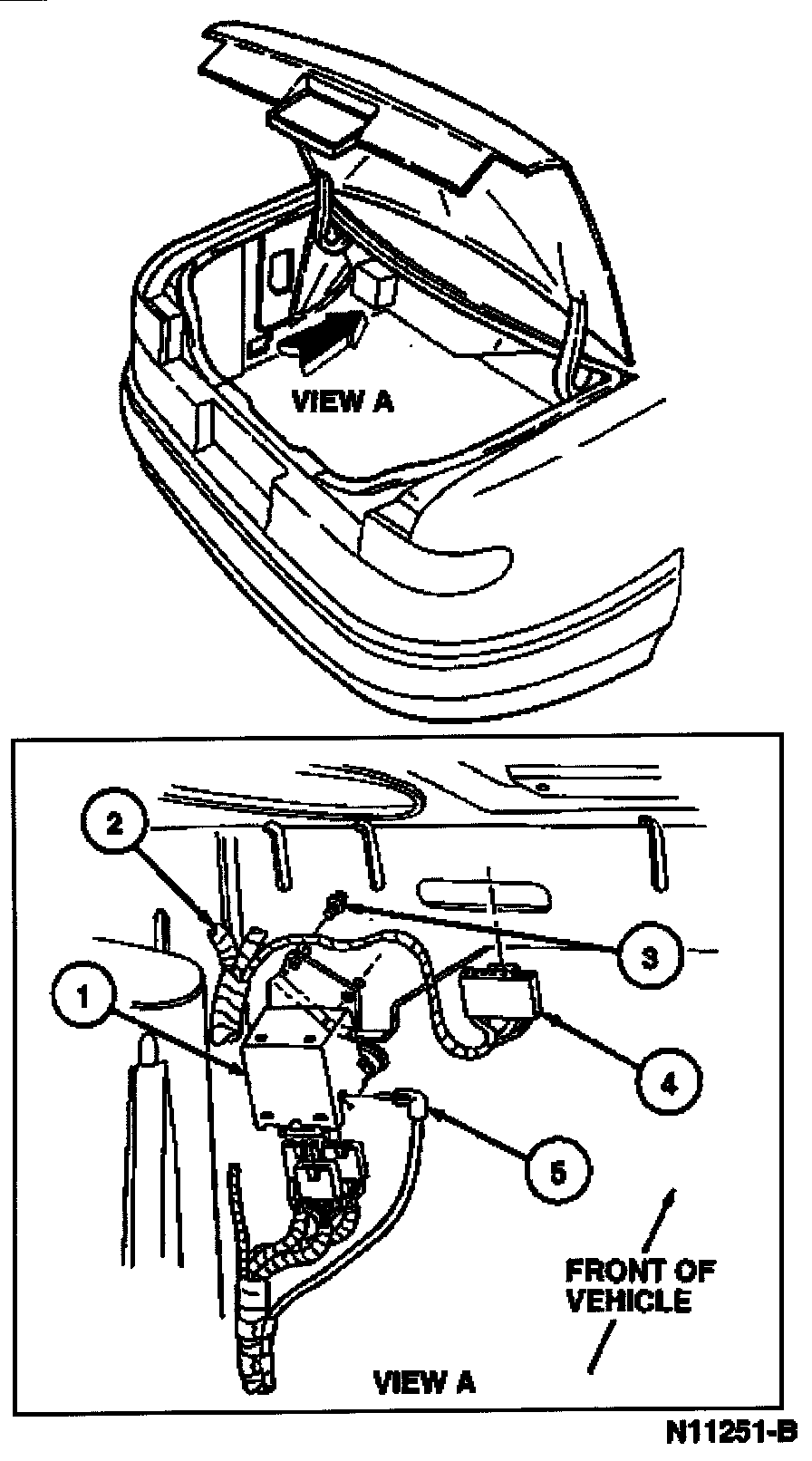

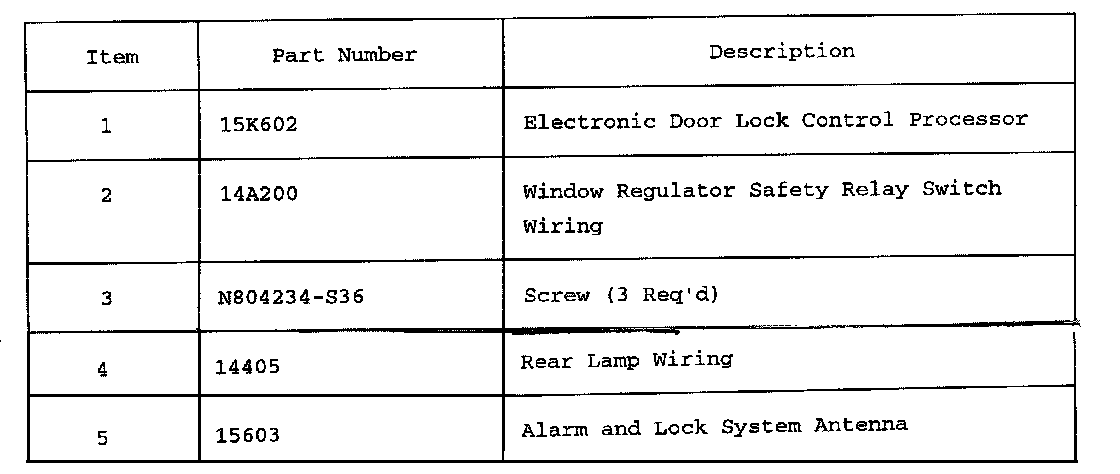

Sedan

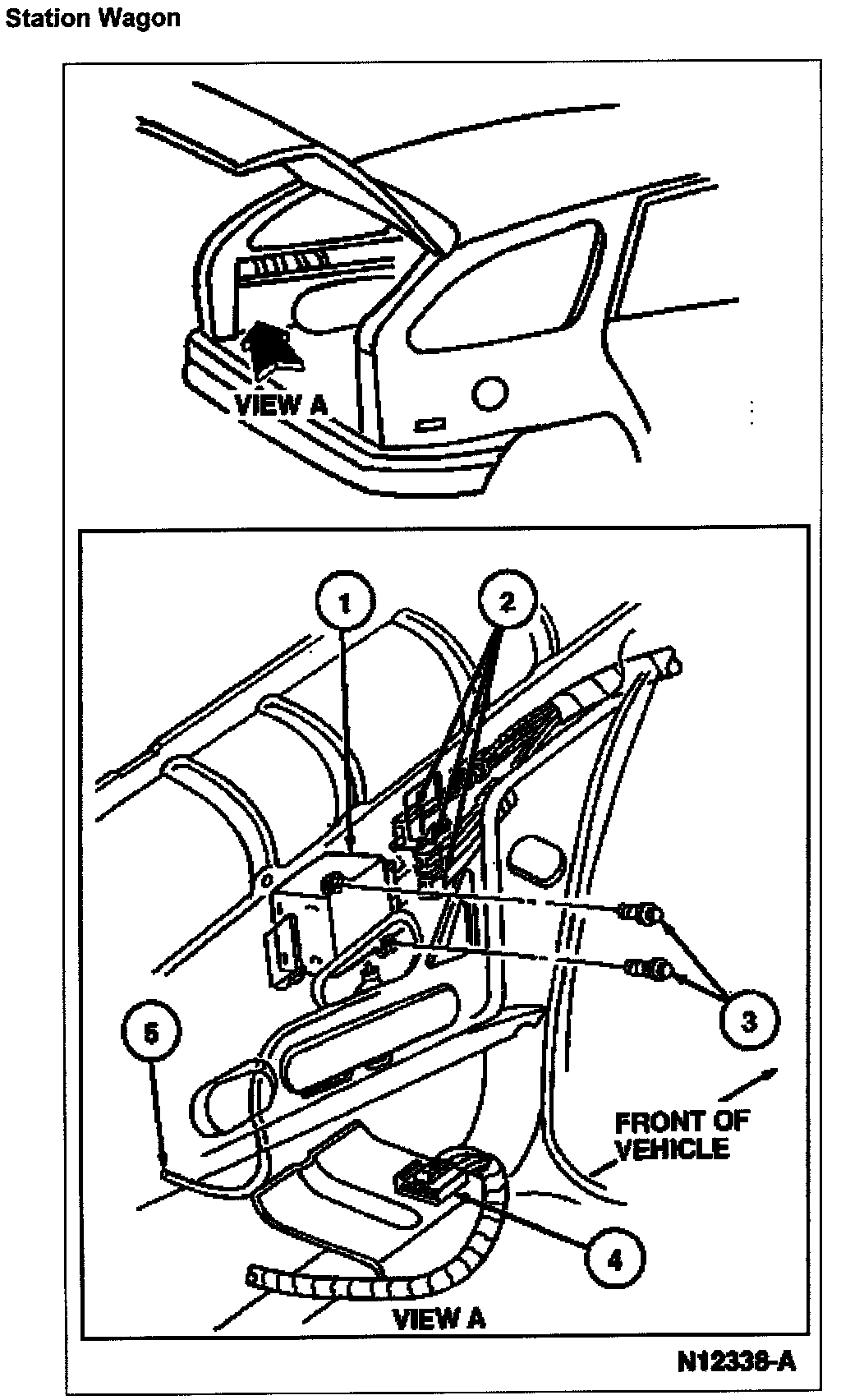

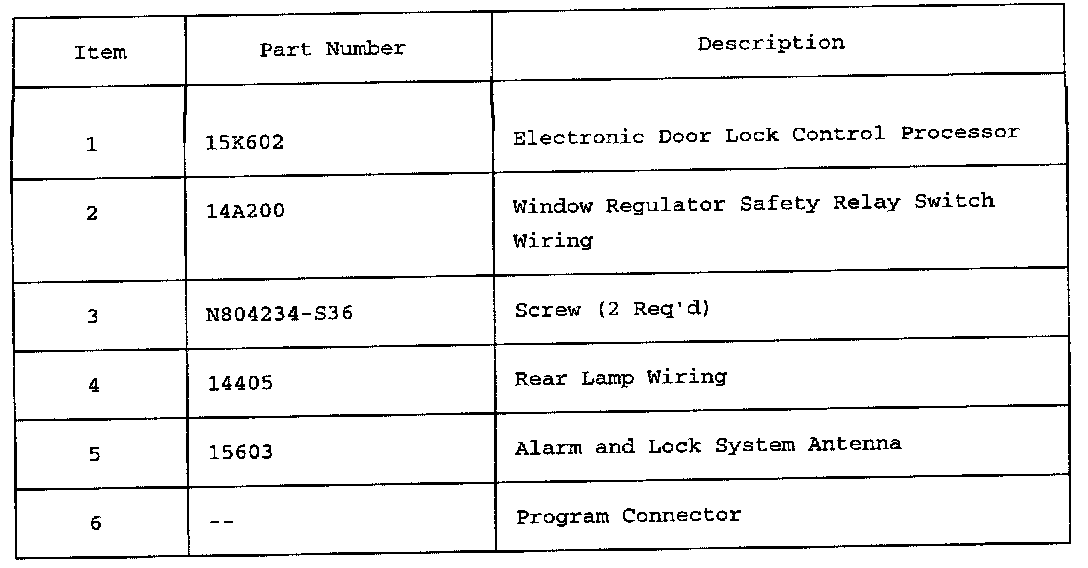

Wagon
1. Access electronic door lock control processor. Refer to illustrations.
2. Remove retaining screws and lower electronic door lock control processor.
3. Disconnect three connectors and alarm and lock system antenna connector. Remove electronic door lock control processor.
4. To install, reverse Removal procedure.
Removal and Installation
Sedan
Wagon
1. Access electronic door lock control processor. Refer to illustrations.
2. Remove retaining screws and lower electronic door lock control processor.
3. Disconnect three connectors and alarm and lock system antenna connector. Remove electronic door lock control processor.
4. To install, reverse Removal procedure.
