1995 Ford Probe Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Pinion Gap Adjustment Test
NOTE:
To prevent starter from turning, disconnect field strap from terminal "M" for following test.
- Using a 12-volt battery, connect positive battery cable to terminal "S", and negative cable to starter body. See Figure
. When negative battery cable is connected to starter body, solenoid should engage and kick pinion out.NOTE: DO NOT engage solenoid for more than 10 seconds at a time. If test must be repeated, wait 3 minutes between attempts.

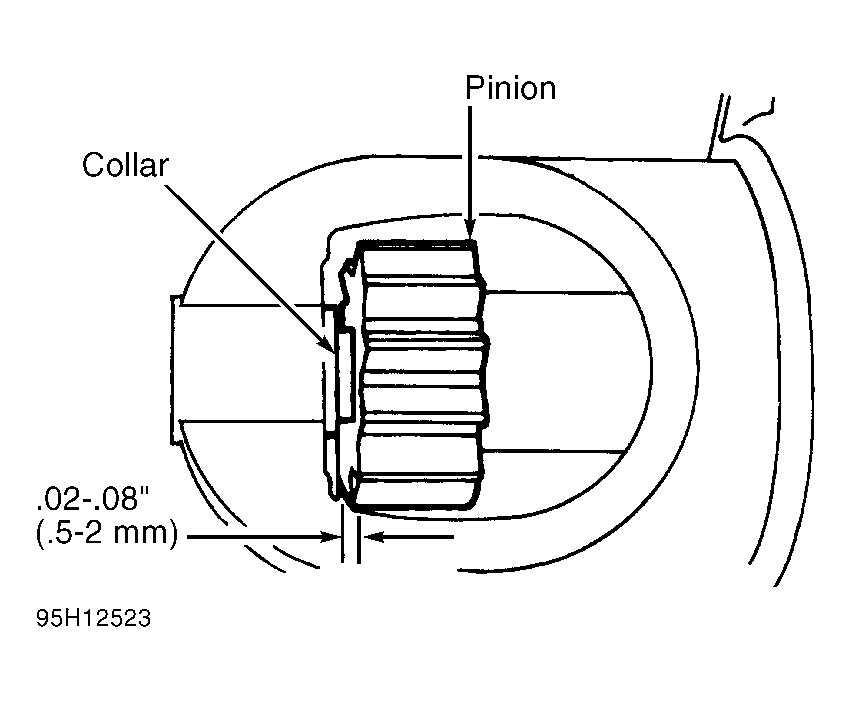

- With pinion extended, measure gap between pinion and collar. Gap should be .02-.08" (.5-2.0 mm). See Fig 1 . If gap is not within specifications, add or subtract shims between solenoid and drive end housing as necessary. Reconnect solenoid terminal "M".
