1995 Ford Probe Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Side Mirror Switch

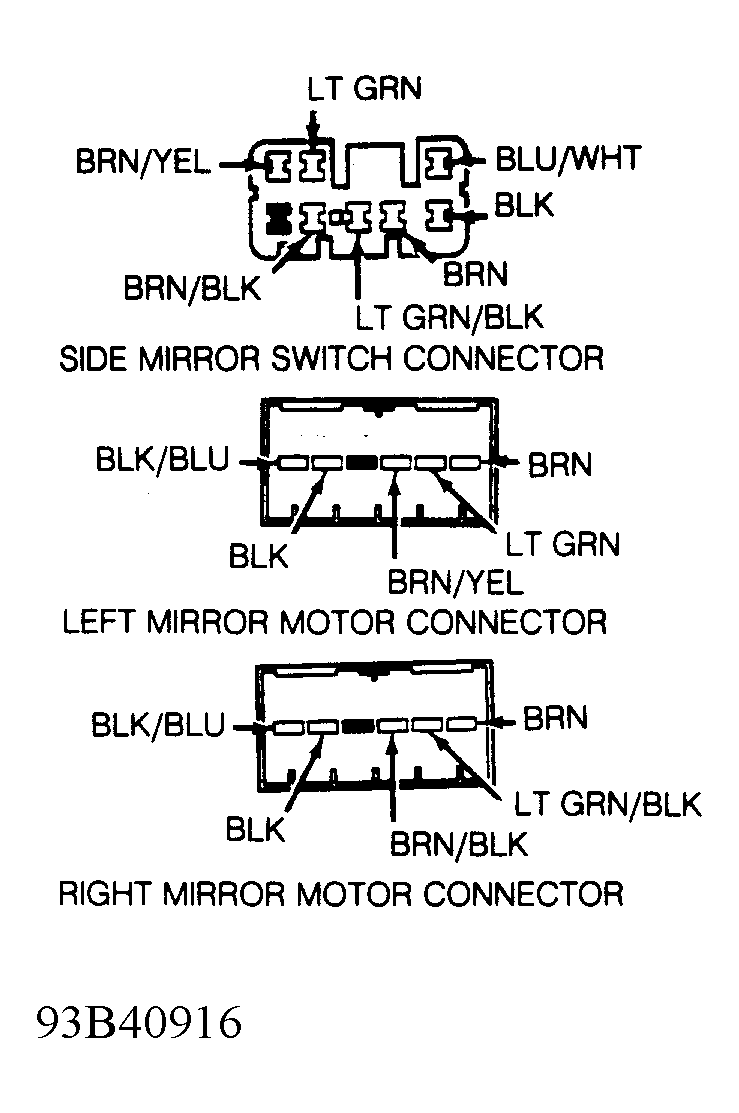

Remove side mirror switch. See SIDE MIRROR SWITCH R & I under REMOVAL & INSTALLATION. Check for voltage between specified wires. See SIDE MIRROR SWITCH TEST table. If switch fails any portion of test, replace switch.
SIDE MIRROR SWITCH TEST (1)
| Switch Position | Battery Voltage | Ground | |||
|---|---|---|---|---|---|
| Left Mirror | |||||
| Up | BRN | BRN/YEL | |||
| Down | BRN/YEL | BRN | |||
| Left | LT GRN | BRN/YEL | |||
| Right | BRN/YEL | LT GRN | |||
| Right Mirror | |||||
| Up | BRN | BRN/BLK | |||
| Down | BRN/BLK | BRN | |||
| Left | LT GRN/BLK | BRN/BLK | |||
| Right | BRN/BLK | LT GRN/BLK | |||
|
|||||
