1993 Ford E 350 Van V8-7.3L DSLFACTORY OEM SERVICE PROCEDURE

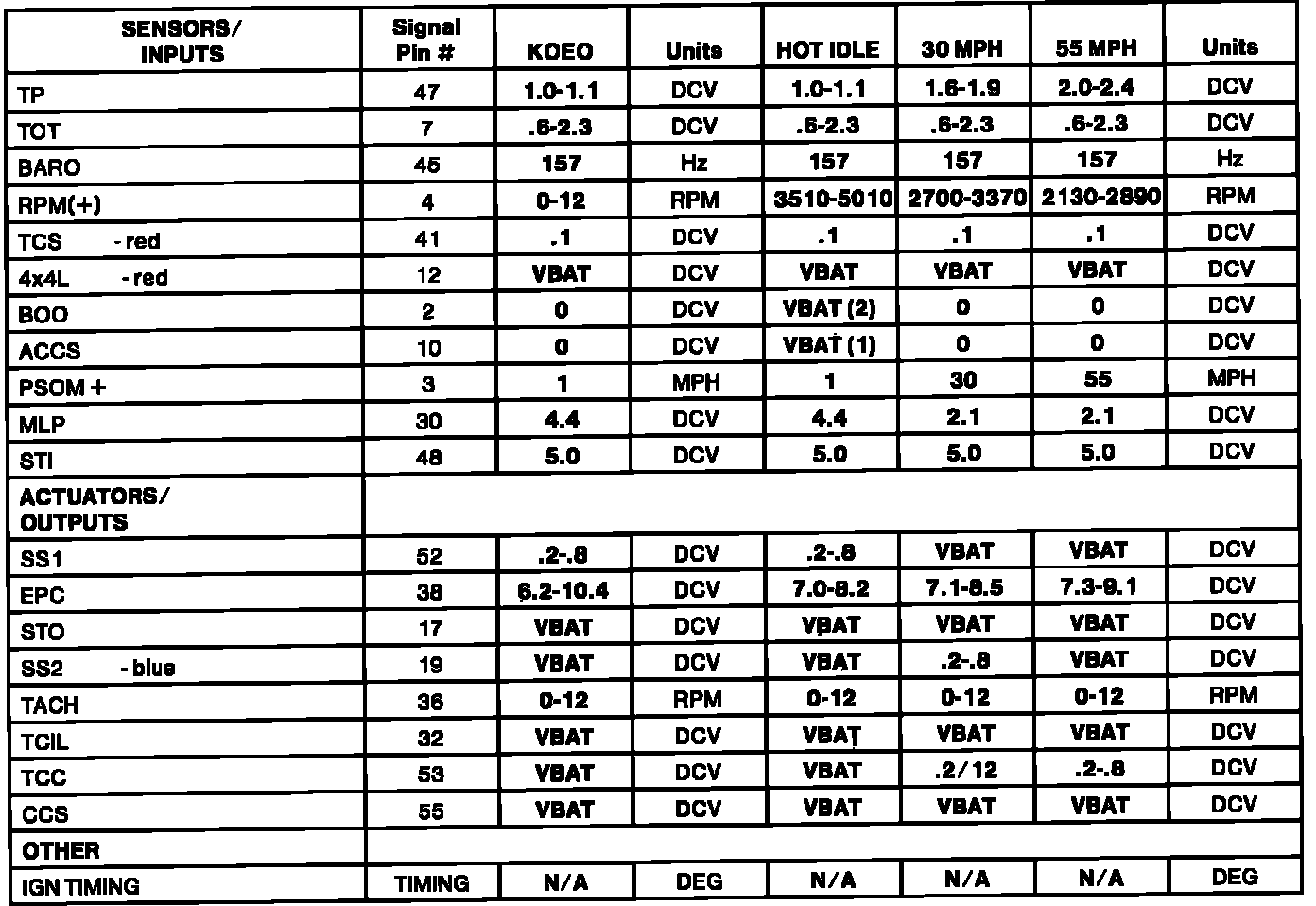

Sensor Functional Range Chart
Diagnostic Reference Values:
NOTES:
1. A/C ON
2. Brake pedal APPLIED.
Reference values shown may vary +/- 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.
