1992 Ford Mustang L4-140 2.3L SOHCFACTORY OEM SERVICE PROCEDURE
Integrated Control Relay Module: Locations

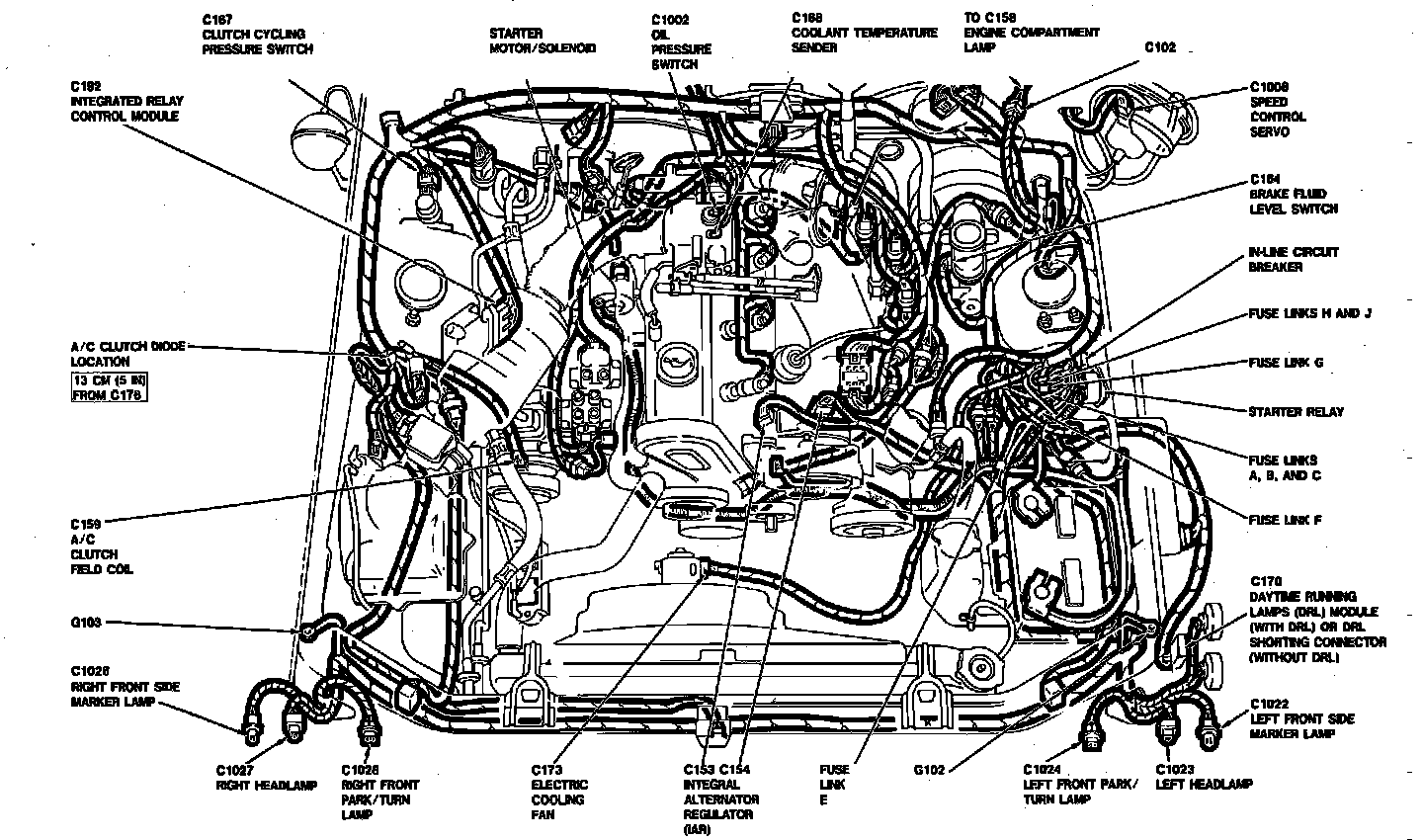

Engine Compartment Components.:
The Integrated Relay Control Module (IRCM) is located at the Front Right Hand Side of the Engine Compartment, on the Shock Tower.
