1991 Ford Probe GL, AutomaticFACTORY OEM SERVICE PROCEDURE

Using The Symptom-To-Diagnostic Flow Chart Menu

To use the SYMPTOM-TO-DIAGNOSTIC FLOW CHART MENU, find the appropriate engine size and symptom exhibited by the vehicle. Following the line to the right will give you the flow chart. The step will be designated in parenthesis ().

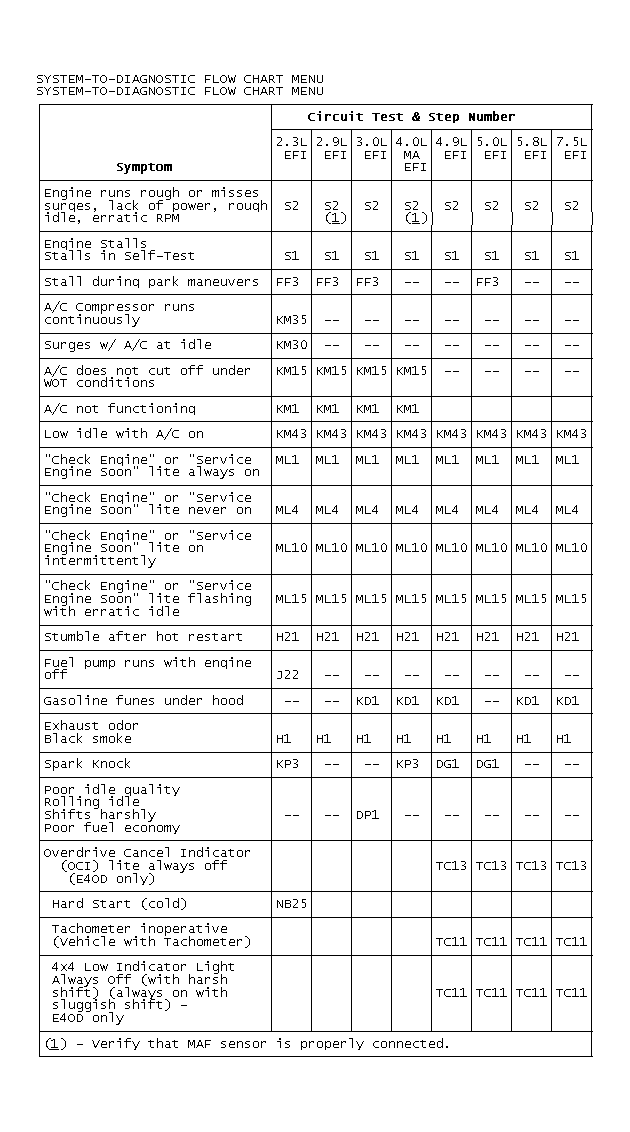

Fig 1: SYSTEM-TO-DIAGNOSTIC FLOW CHART MENU
