Power Circuits

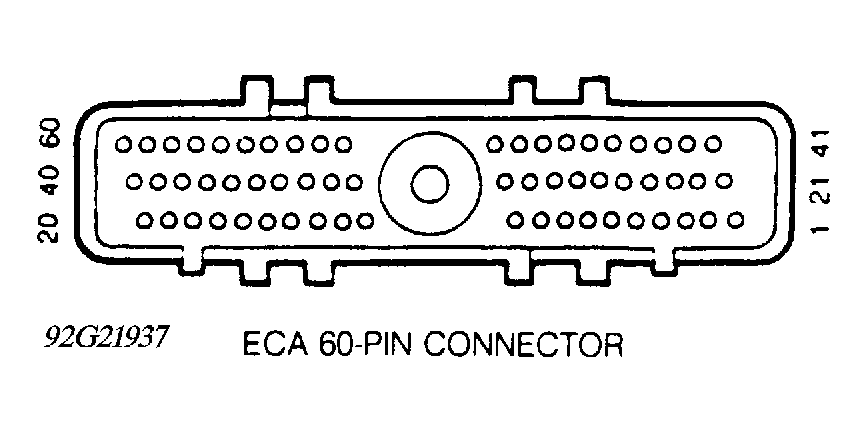

Using a voltmeter, check for battery voltage between ECA terminal No. 1 (KAPWR) and ground. Check for battery voltage at terminals No. 37 and 57 (VPWR). If battery voltage is not present, power is not being supplied from EEC power relay. See CIRCUIT TEST B in TESTS W/CODES EEC-IV article in the ENGINE PERFORMANCE Section.
| Application | Location | ||
|---|---|---|---|
| Aerostar | Left Firewall, Left of Master Cylinder | ||
| Bronco & "F" Series | Left Firewall, Below Brake Fluid Reservoir | ||
| Explorer, Navajo & Ranger | Behind Right Kick Panel | ||
| "E" Series | Right Fender Apron, Under Blower Motor | ||
|
|||
