Test 3, Check Dis Module Pip Out

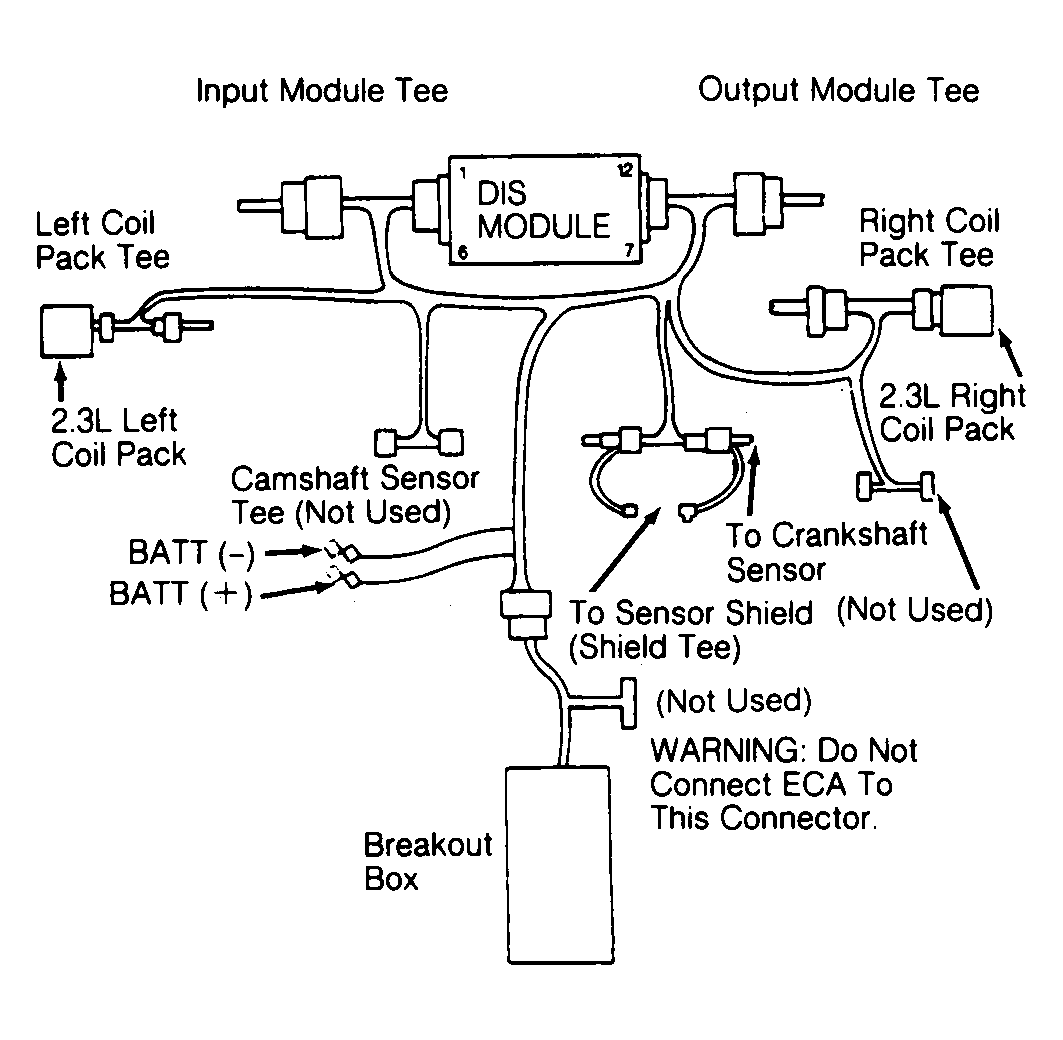

Install DIS diagnostic Cable (007-00044). Connect diagnostic cable to Breakout Box (T83L-50-EEC-IV). See Fig 1. Use 2.3L overlay. Connect LED test light between breakout box pins No. (+) J31 (PIP EEC) and (-) J60 (BAT -). Crank engine. If test light blinks continuously during cranking, go to next test. If test light does not blink continuously during cranking, replace DIS module, and check for fault codes.
