1990 Ford Tempo BaseFACTORY OEM SERVICE PROCEDURE
Tripminder Interface Module (Mark VII)
- Remove instrument cluster sufficiently to access the cluster electrical connector.

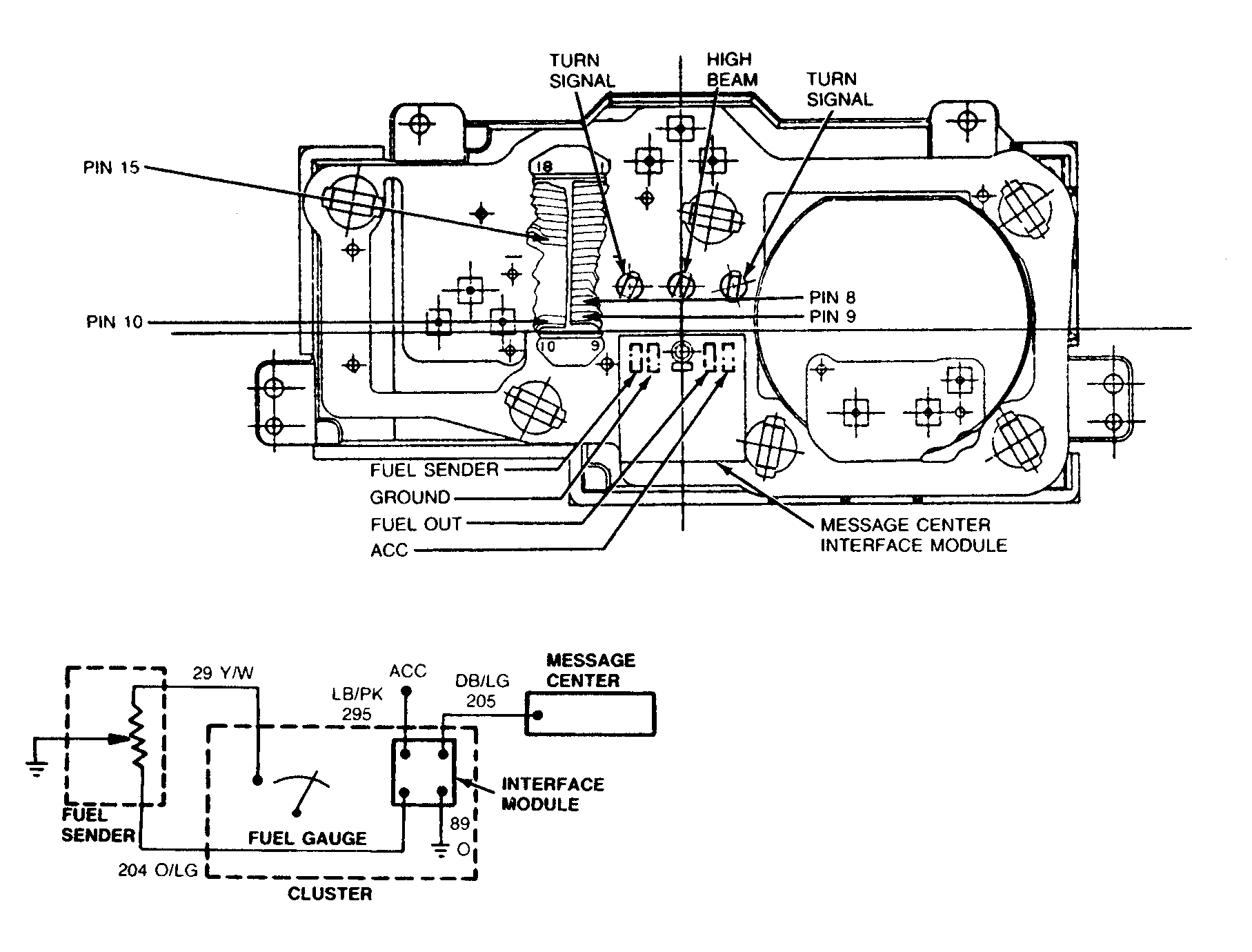

- Using a voltmeter, with the ignition switch in the "RUN" position and the cluster harness connector plugged into the cluster, measure the output voltage at Pin No. 9 of the instrument cluster and ground. See Fig 1 and Fig 2 .
