1990 Ford Probe V6-182 3.0LFACTORY OEM SERVICE PROCEDURE
Attachment III - Technical
Attachment III-1
Emissions Recall 91E08
EMISSIONS CONTROL SYSTEMS INSTALLATION INSTRUCTIONS
Service Part Number - F12Z-12A650-BK
Kit Contents
Component Part Number Part Name Quantity
F12Z-12A650-BB EEC Module 1
F22E-12A661-AA Special Service
Information Decal 1
FPS-8262-PP Preprinted Authorized
Modifications Decal 1
I.S. 8026 Instruction Sheet 1
AFFECTED VEHICLES:
1990 Model year Probes produced for sale in the 49-States and Canada equipped with automatic transmission and 3.0L engine having calibration 0-10B-R00.
MODIFICATION INSTRUCTIONS:
1. Remove and replace the existing EEC module, with the new EEC module Part Number F12Z-12A650-BB.
AUTHORIZED MODIFICATIONS AND
SPECIAL SERVICE INFORMATION DECALS
^ The preprinted Authorized Modifications and Special Service Information Decals shown are provided in the parts kit.

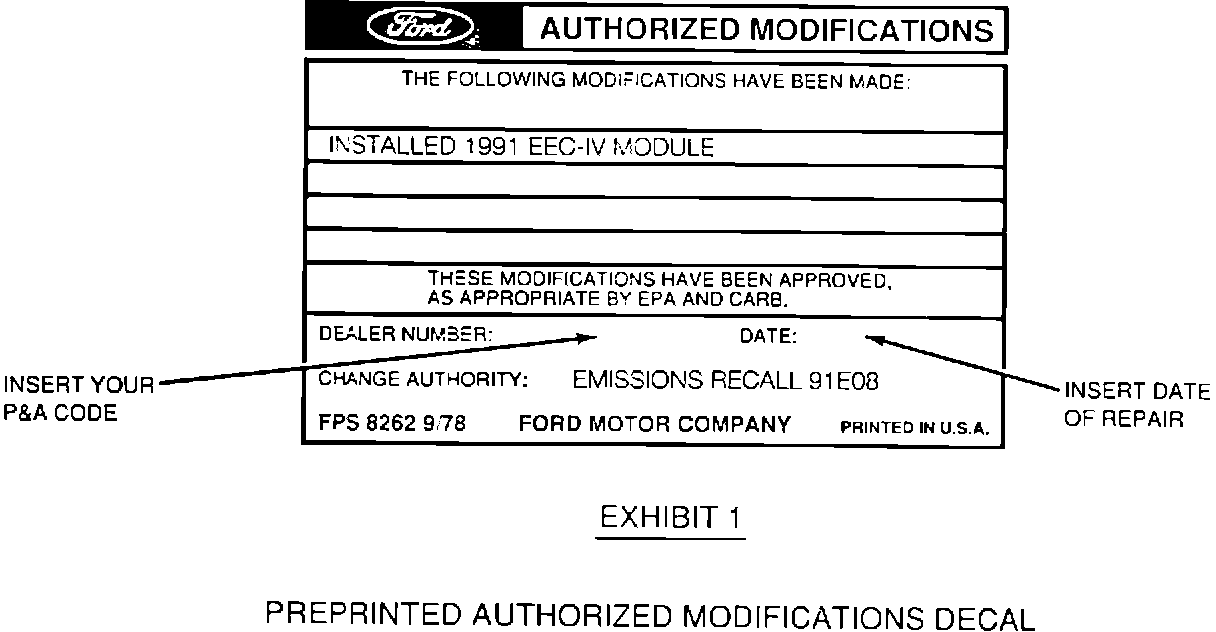

^ Refer to Exhibit 1. Clean the surface of the radiator support and attach the Authorized Modifications Decal to the support. Insert your P&A Code and date on the decal and apply the clear overlay over the decal.

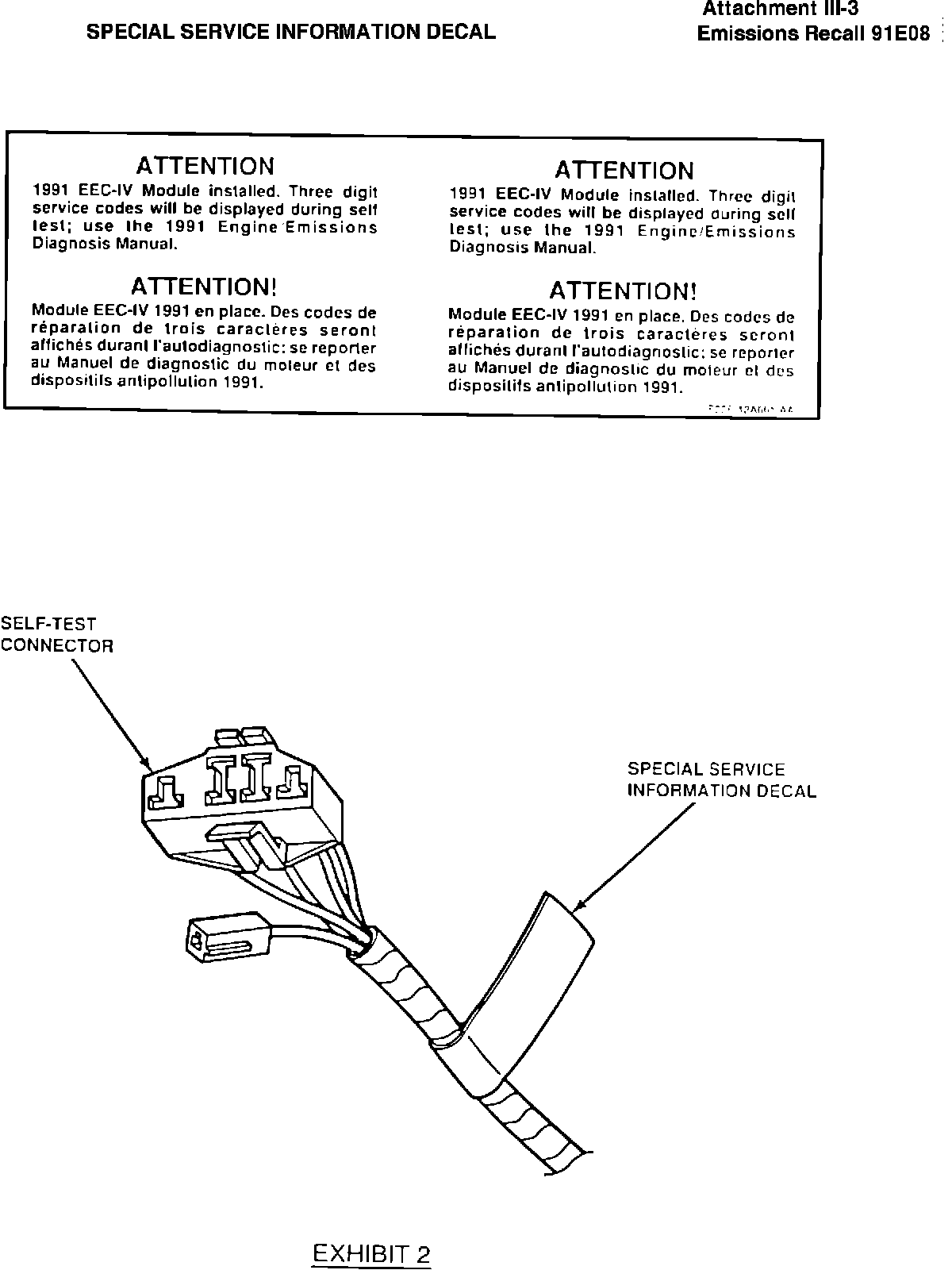

^ Refer to Exhibit 2. Attach the Special Service Information Decal to the Self-Test Connector as shown.
