1990 Ford Probe V6-182 3.0LFACTORY OEM SERVICE PROCEDURE
Rear

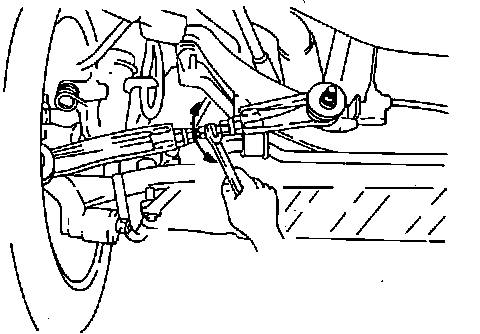

Fig. 2 Adjusting Rear Toe-in:
1. Loosen jam nuts clockwise on right control arm, then loosen jam nuts counterclockwise on left control arm.
2. To increase toe-in, turn right control arm rod counterclockwise and turn left control arm rod clockwise.
3. To decrease toe-in, turn right control arm clockwise and turn left control arm counterclockwise. Turn control arm rods into or out of control arm ends an equal amount on each side. One turn of each control arm rod changes toe by 0.46 inch.
4. Torque control arm jam nuts to 41-59 ft lb.
