1990 Ford Probe GL, AutomaticFACTORY OEM SERVICE PROCEDURE
Test B1 - Vehicle Speed Sensor (VSS): Notes

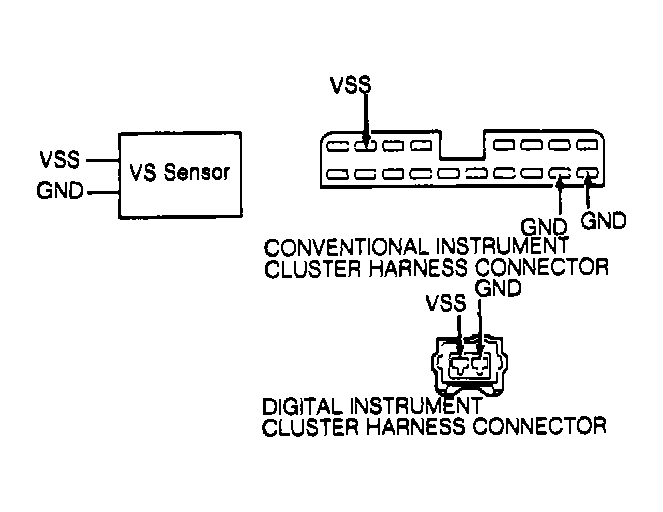

CIRCUIT PIN IDENTIFICATION
| Circuit | Breakout Box Pin | ECA Pin | |
|---|---|---|---|
| ATX Non-Turbo | |||
| GND | 39, 40, 44 | 3A | |
| VSS | 3 | 1M | |
| Except ATX Non-Turbo | |||
| GND | 39, 40, 44 | 3A | |
| VSS | 3 | NA | |
NOTE:
Enter this test only when Code 06 is displayed during QUICK TEST procedures. This test is intended to diagnose only vehicle speed sensor circuits.
