Fuel Pump Relay

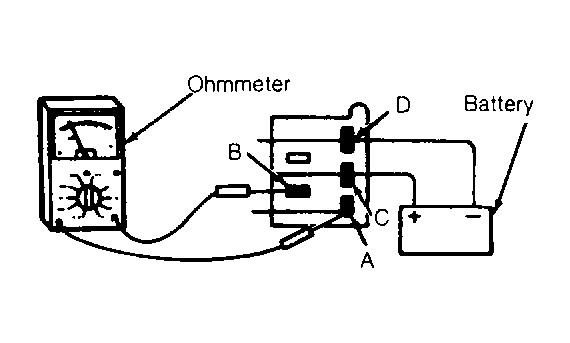

Remove relay from vehicle. Connect battery voltage to terminal "C". Ground terminal "D". See Fig 1 . Measure resistance between terminals "A" and "B". Resistance should be less than one ohm with power applied and greater than 10 k/ohms with power removed.
