1990 Ford Bronco II RWD, Standard, M5OD-R1FACTORY OEM SERVICE PROCEDURE
Air Check Valve
- Visually inspect thermactor hoses, tubes, control valve(s) and check valve(s) for leaks from exhaust gas backflow. If holes are found and/or traces of exhaust gas products are evident, check valve may be suspect.

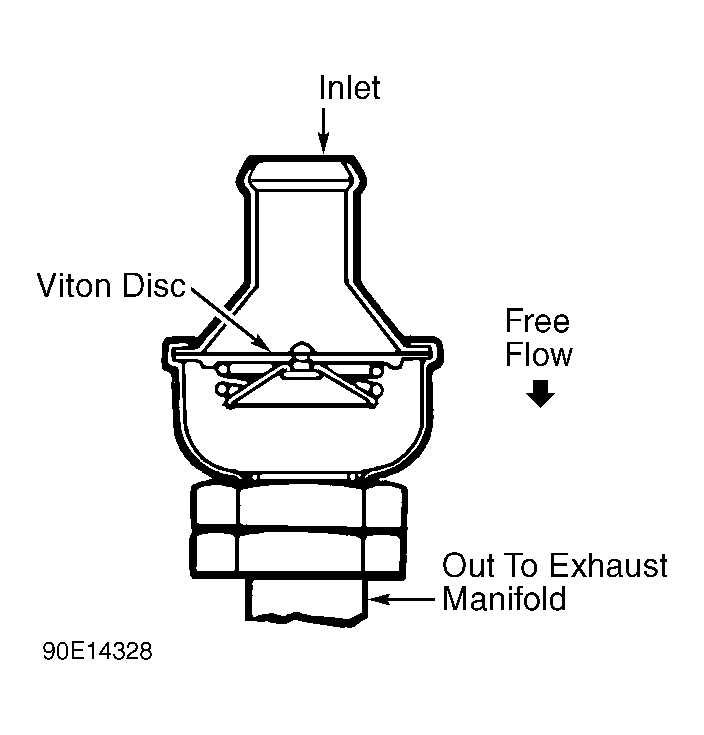

- Valve should allow free flow of air in direction of arrow only. See Fig 1 . The valve(s) should check (or block) free flow of exhaust gas air in opposite direction.
- If air does not flow as indicated or if exhaust gas backflows opposite of direction of arrow in illustration, replace check valve.
