1990 Ford Bronco II RWD, Standard, M5OD-R1FACTORY OEM SERVICE PROCEDURE
Static Timing

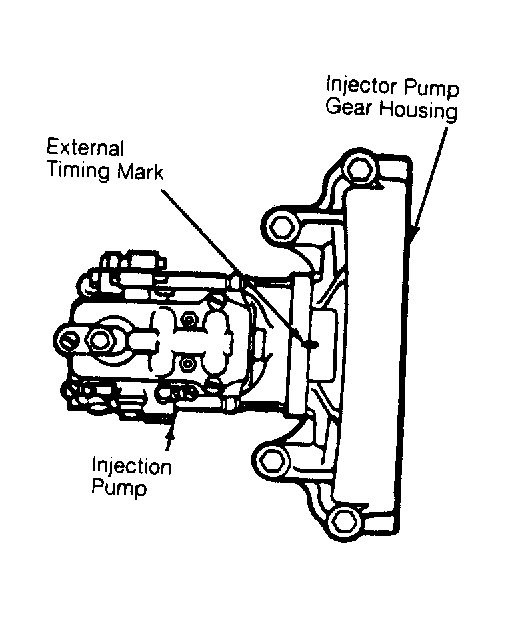

- Remove fast idle bracket and solenoid from injection pump. Using Pump Mounting Wrench (T86T-9000-C) loosen nuts holding injection pump to pump mounting adapter. Install Rotating Wrench (T83T-9000-C) on front of pump and rotate to align timing mark on pump mounting flange with timing mark on pump mounting adapter. See Fig 1 .
- Align to within .030". Remove rotating wrench and tighten nuts to specifications. Ensure timing marks are aligned. Install fast idle bracket and solenoid. Tighten mount bolts to 25 ft. lbs. (34 N.m).
