Compressor By-Pass Valve Function Check

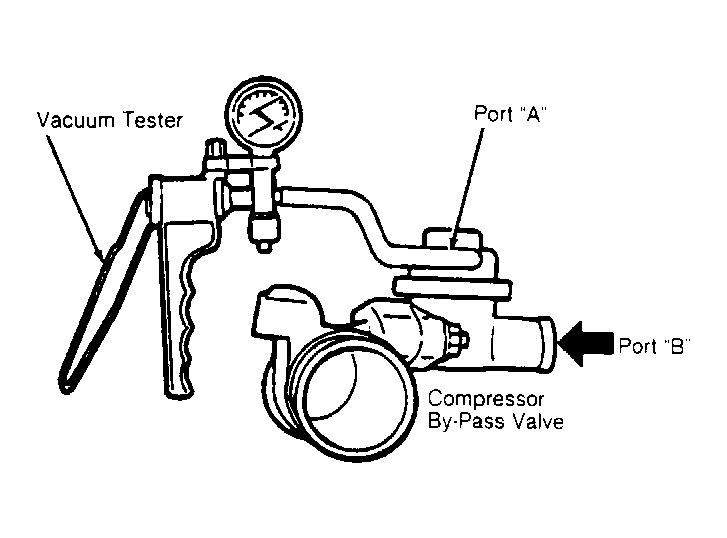

With compressor by-pass valve removed from the vehicle, apply a vacuum of 9.8-15.7 in. Hg to port "A" of the valve. See Fig 1 . Blow through port "B" to verify air flows. If air does not flow, replace compressor by-pass valve.
