1989 Ford Festiva LFACTORY OEM SERVICE PROCEDURE
Ignition Coil Resistance

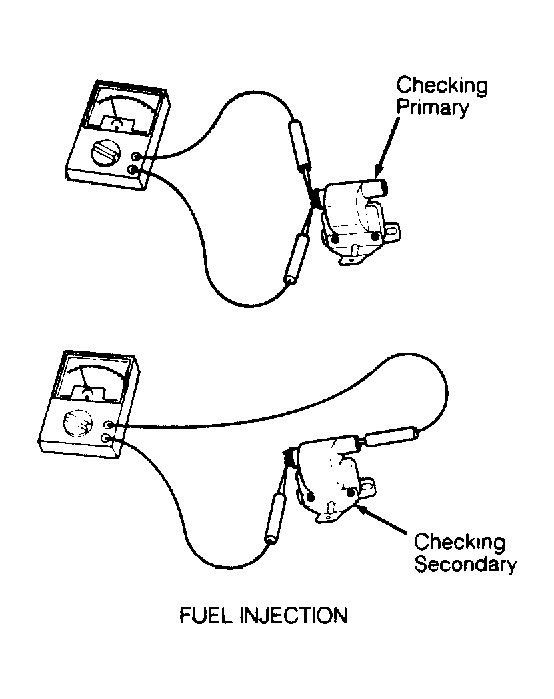

- Inspect coil for signs of arcing or leakage. Remove primary and secondary leads from ignition coil. Using ohmmeter, check primary resistance between (positive) and (negative) terminals of coil. See Fig 1 and Fig 2 .
- Check secondary resistance between (positive) terminal and coil tower. See IGNITION COIL RESISTANCE . Replace coil if readings are not within specifications.
