1988 Ford Bronco II 4WD, Standard, M5OD-R1FACTORY OEM SERVICE PROCEDURE

VENTURI Vacuum Amplifier

NOTE: Amplifiers have built-in calibrations, and no external adjustments are required. If amplifier bias test reveals malfunction, replace amplifier. Always check venturi vacuum amplifier last, after checking all other basic EGR components.
  1. With engine at normal operating temperature, curb idle set and adequate manifold vacuum supplied to system, connect vacuum gauge to hose at amplifier port "O". See Fig 1 . Gauge may read as much as 2 in. Hg at idle.
  2. Disconnect venturi hose (amplifier port "V") at carburetor and increase engine speed to 2000-3000 RPM. Vacuum should not change.
  3. While maintaining high engine speed, connect venturi hose. Vacuum should increase to 4 in. Hg. Return to idle. Gauge should return to initial reading. If amplifier does not perform as specified, replace amplifier.

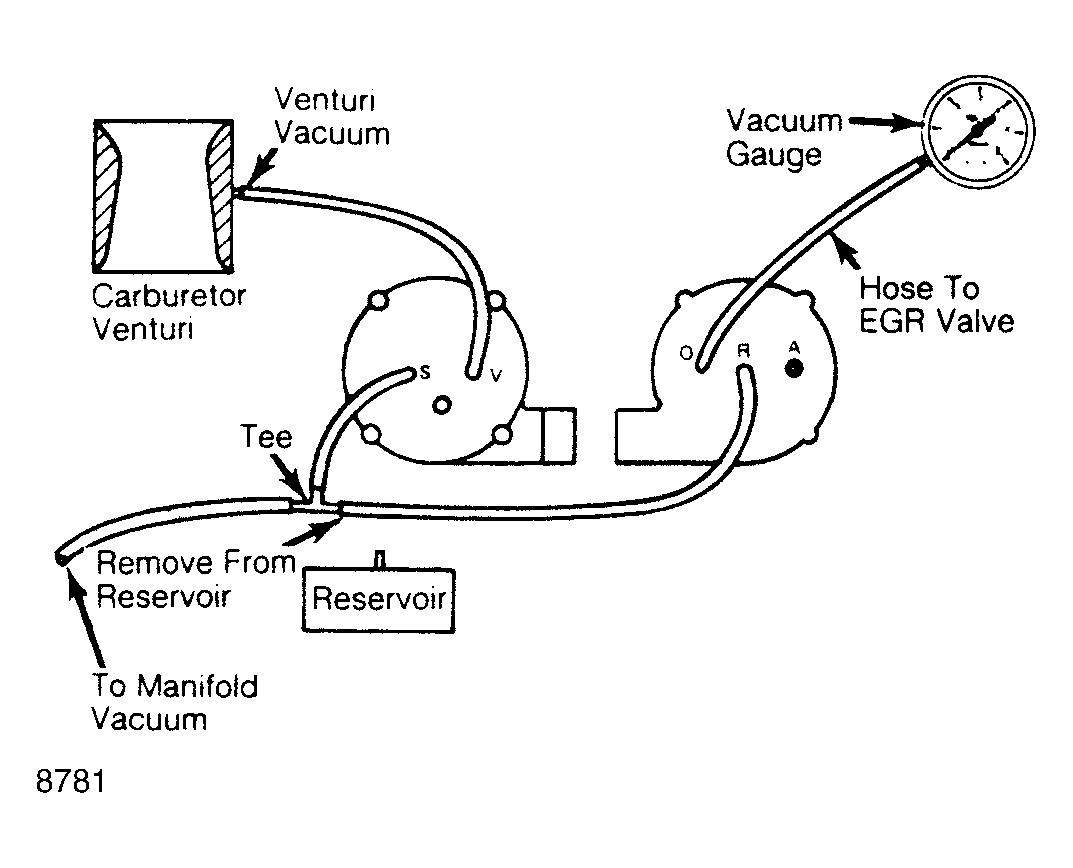

Fig 1: Testing Venturi Vacuum Amplifier
G8781Courtesy of FORD MOTOR CO.
