1987 Ford Taurus L4-153 2.5L HSCFACTORY OEM SERVICE PROCEDURE
Manual A/C System

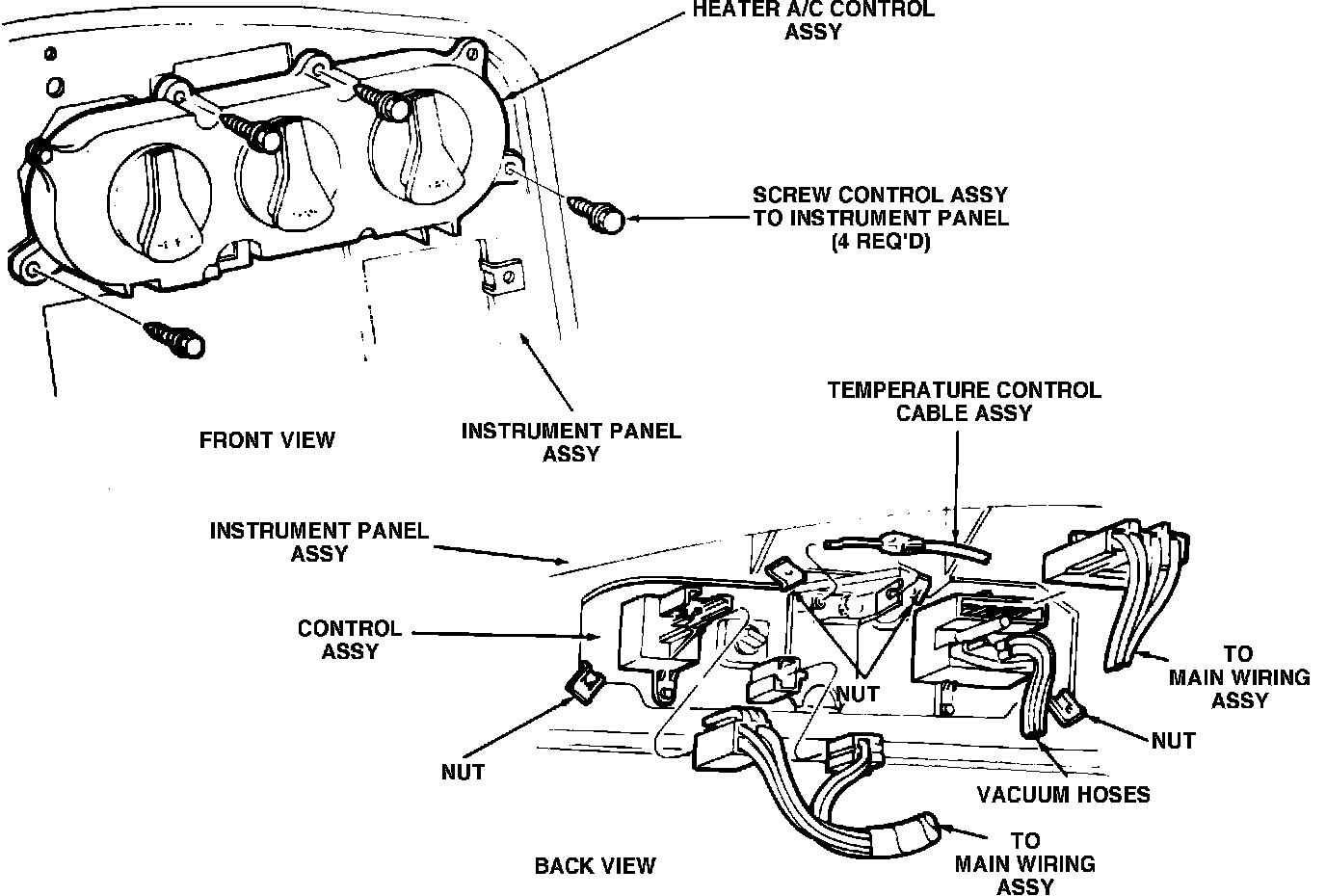

Fig. 14 Control panel removal:
1. Disconnect battery ground cable.
2. Remove control assembly-to-instrument panel attaching screws, Fig. 14.
3. Pull control assembly away from instrument panel, then disconnect electrical connectors, vacuum harness and temperature control cable from the assembly.
4. Remove control assembly from instrument panel.
5. Reverse procedure to install.
