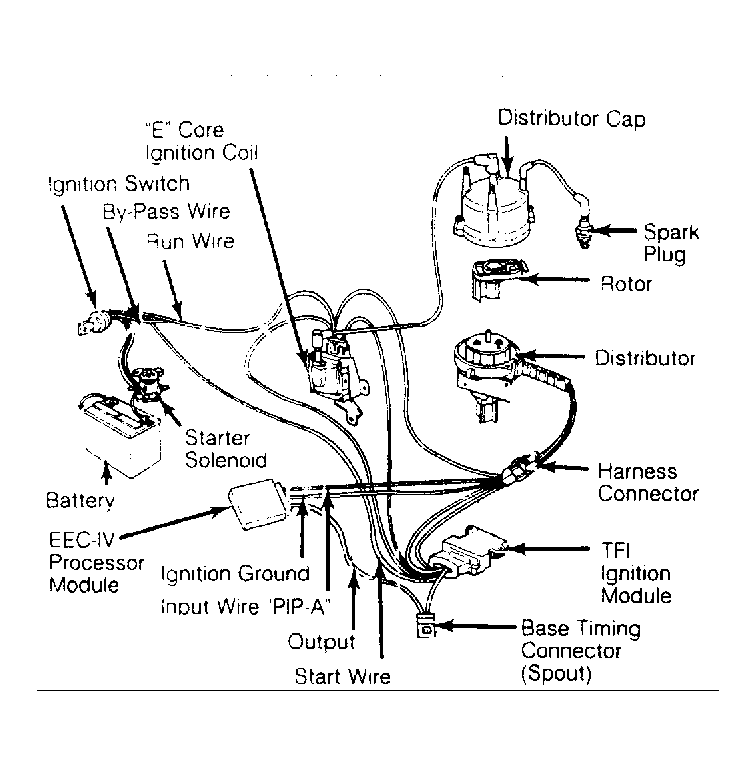

Ignition System - TFI-IV: Operation
The TFI-IV distributor uses a Hall Effect switch mechanism to switch primary voltage and to trigger the discharge of high secondary voltage. Crankshaft position and engine load signal is supplied to the EEC-IV Electronic Control Assembly (ECA) to compute spark advance. Distribution of high secondary voltage is accomplished through a conventional cap, rotor, and spark plug wires.
