Fuel Selector Valve: Description
Systems usually consist of a fuel selector valve, fuel pump cut-off relay, tank selector valve or relay, inertia switch, selector switch and an electric fuel pump.

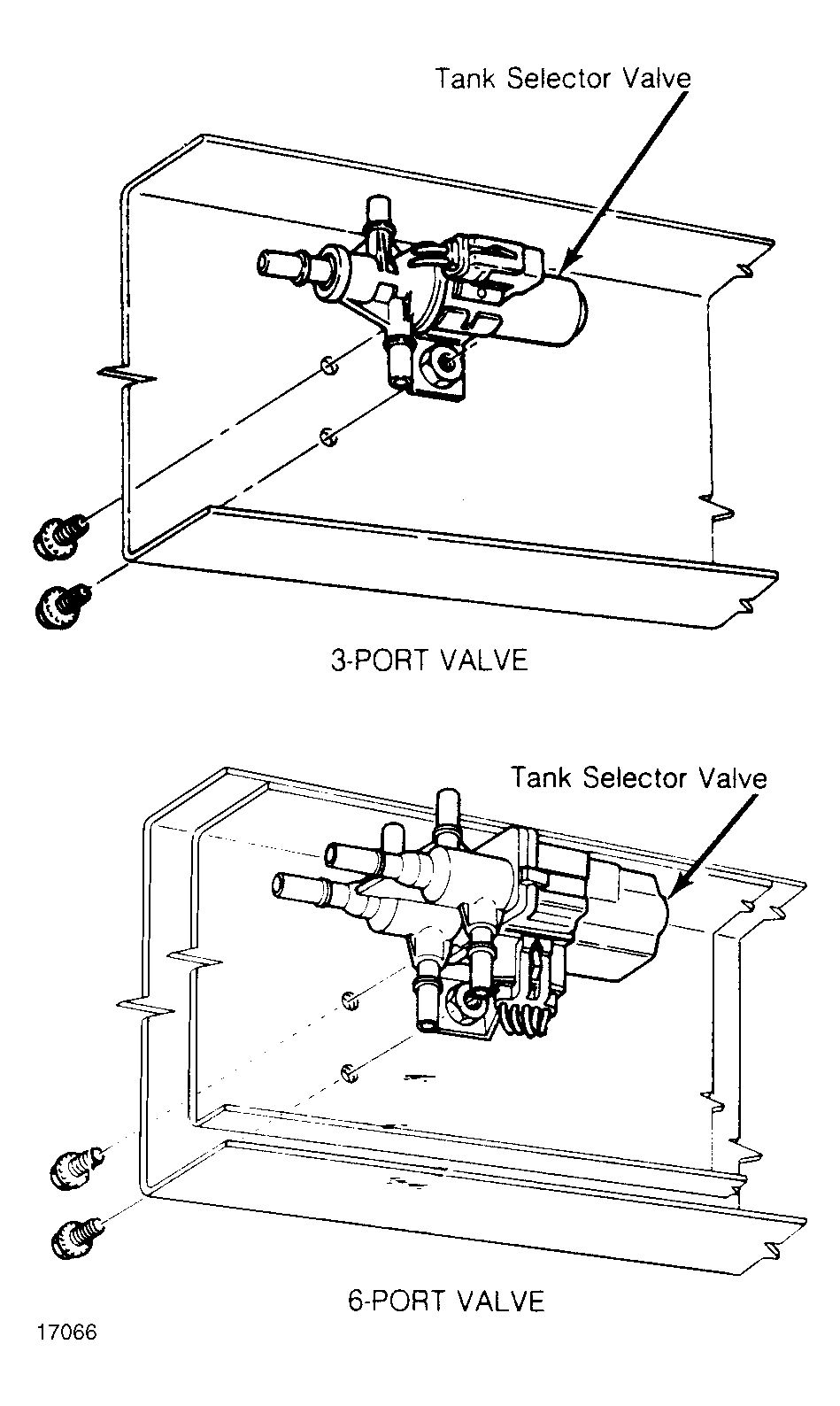

A 3-port electrically actuated fuel tank selector valve is used on Ford 150 and 350 series models. Other Ford models use a 6-port selector valve. See Fig 1 .
