1987 Ford Bronco II 4WD V6-177 2.9LFACTORY OEM SERVICE PROCEDURE
Control Module Self Test
The electronic control module has a diagnostic capability of its internal circuitry. Self test procedure is as follows:
1. Disconnect five-wire and eight wire connectors from electronic control module.
2. Turn ignition switch to the RUN position.
3. Activate the self test switch and note result:

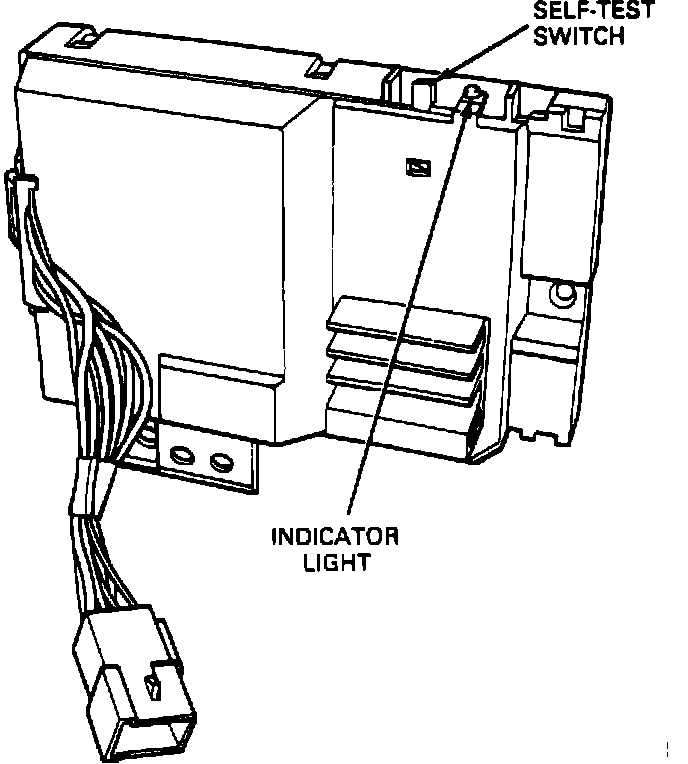

NOTE: The self test switch and indicator light is located on the Electronic Control Module.
A FLASHING INDICATOR LAMP, (approximately one flash per second), indicates control module is functioning properly.
A STEADY INDICATOR LIGHT, indicates that control module is inoperative and must be replaced.
1. Disconnect five-wire and eight wire connectors from electronic control module.
2. Turn ignition switch to the RUN position.
3. Activate the self test switch and note result:
Control Module Self Test:
NOTE: The self test switch and indicator light is located on the Electronic Control Module.
A FLASHING INDICATOR LAMP, (approximately one flash per second), indicates control module is functioning properly.
A STEADY INDICATOR LIGHT, indicates that control module is inoperative and must be replaced.
