1986 Ford Aerostar V6-183 3.0LFACTORY OEM SERVICE PROCEDURE

Ignition Control Module: Description and Operation

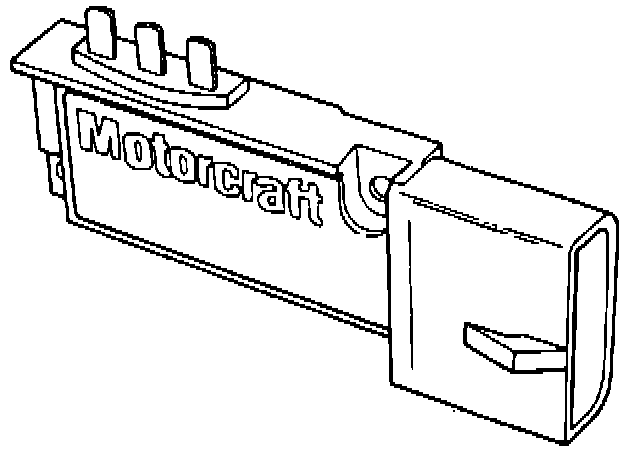

Thick Film Ignition Module:

Factory service manual diagram




The TFI IV ignition module, Fig. 14, has six connector pins at the wiring harness that supplies the following signals:
Run
Crank (start)
Tach (coil)
PIP (crankshaft position to ECA)
Spark output (SPOUT from ECA)
Internal ground from the ECA to the distributor

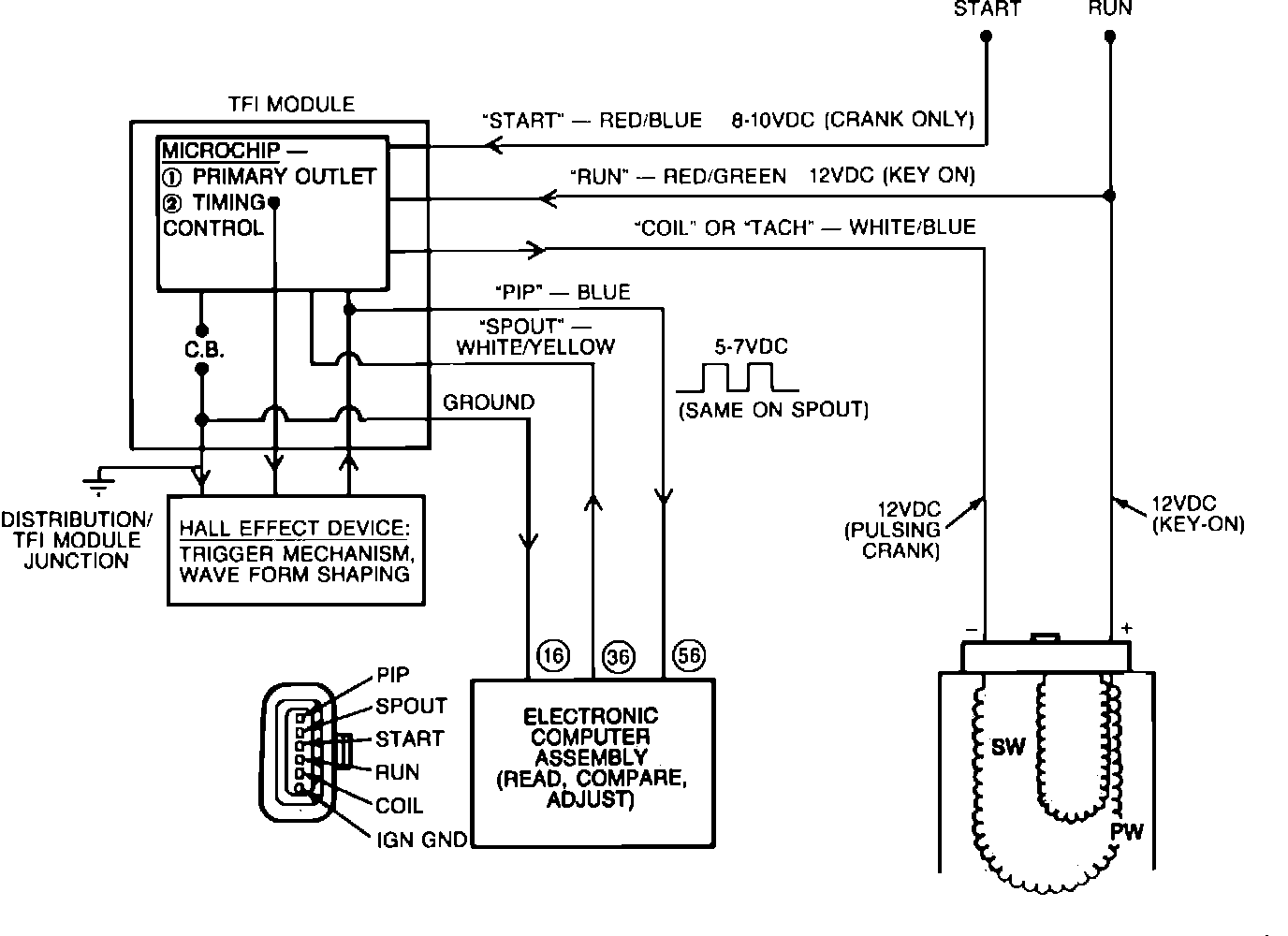

Ignition System:

Factory service manual diagram




The TFI IV module supplies the spark to the distributor through the ignition coil and calculates the duration. It receives its control signal from the ECA (SPOUT) Fig. 29.

NOTE: Some later models use a remote module (Closed Bowl Distributors/CBD). It is located in the engine compartment (Refer to "COMPONENT LOCATIONS"). The operation is essentially the same with the exception of the CBD has a wiring harness between the ignition module and the distributor.
